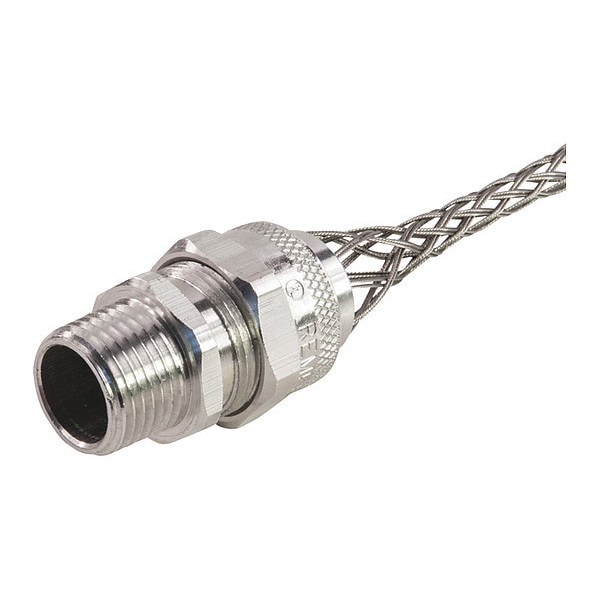

Cord Grip, Alum, 3" NPT, 1.812-1.938, Mesh
| Item | Cord Grip,Alum,3" NPT,1.812-1.938,Mesh |
|---|---|
| Cord Grip Type | Straight |
| Thread Size | 3 |
| Bushing Material | Neoprene |
| Form Size | 7 |
| CSA Specification | 28,985 |
| Maximum Knock Out Size (In) | 3.625 |
| Flammability Rating | UL 94HB |
| Thread Type | NPT |
| Minimum Operating Temperature (F) | -40 |
| Bushing Holes | 1 |
| Clearance Hole (In) | 3.625 |
| Cable Range | 1.812 to 1.938 |
| Maximum Operating Temperature (F) | 250 |
| Body Material | Aluminum |
| Hazardous Class/Division | Class 1, Div 2 |
| Conduit Size | 3 |
| Inside Body Diameter / Body Bore | 2.79 |
| UL Specification | E53599 |
| Package Quantity | 1 |
