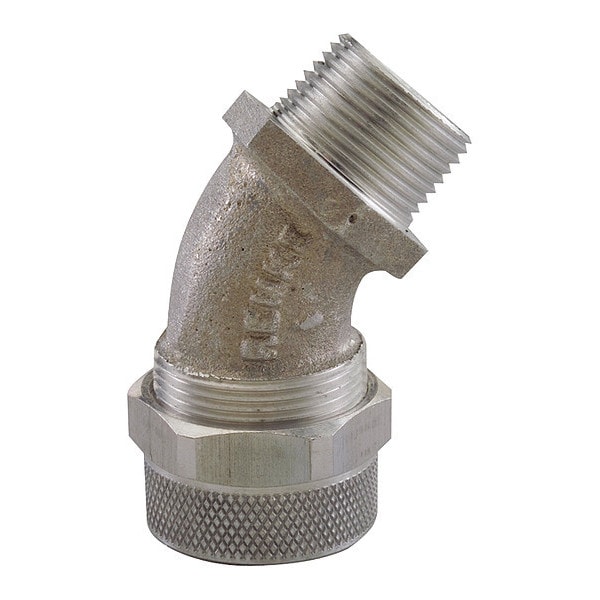

Cord Grip, Alum, 45 deg., 1/2", .375-.438
| Item | Cord Grip,Alum,45 deg.,1/2",.375-.438 |
|---|---|
| Conduit Size | 44,928 |
| Minimum Operating Temperature (C) | -40 |
| Bushing Material | Neoprene |
| Body Material | Aluminum |
| Clearance Hole (in) | 0.906 |
| D Dimension (in) | 2.39 |
| Inside Body Diameter / Body Bore | 0.595 |
| Thread Size | 44928 |
| C Dimension (in) | 1.88 |
| Maximum Operating Temperature (C) | 121 |
| B Dimension (in) | 0.56 |
| Cable Range | 0.375 to 0.438 |
| F Dimension (in) | 1.26 |
| Minimum Operating Temperature (F) | -40 |
| Connector Material | Aluminum |
| Max Cable Range over Jacket (in) | 0.438 |
| Maximum Operating Temperature (F) | 250 |
| Form Size | 2 |
| Flammability Rating | UL 94V-2 |
| Thread type | NPT |
| E Dimension (in) | 1.03 |
| A Dimension (in) | 0.58 |
| Min Cable Range over Jacket (in) | 0.375 |
| CSA Specification | 28,985 |
| Bushing Holes | 1 |
| Hazardous Class/Division | Class 1, Div 2" |
| Maximum Knock Out Size (in) | 0.906 |
| Cord Grip Type | Straight |
| UL Specification | E53599 |
| Package Quantity | 1 |
