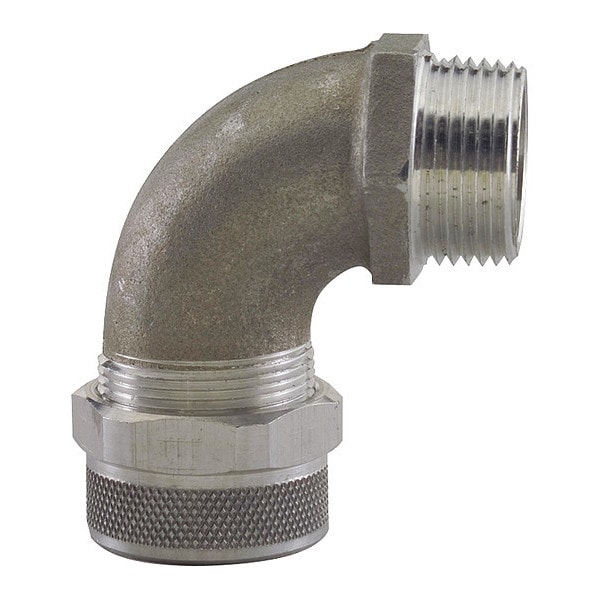

Cord Grip, Alum, 90 deg., 1-1/4", .875-1.00
| Item | Cord Grip,Alum,90 deg.,1-1/4",.875-1.00 |
|---|---|
| Conduit Size | 1.25 |
| UL Specification | E53599 |
| Maximum Operating Temperature (F) | 250 |
| Minimum Operating Temperature (F) | -40 |
| Clearance Hole (In) | 1.766 |
| Thread Type | NPT |
| Cord Grip Type | 90 Degree |
| Bushing Material | Neoprene |
| Bushing Holes | 1 |
| Thread Size | 1.25 |
| Maximum Knock Out Size (In) | 1.766 |
| Hazardous Class/Division | Class 1, Div 2 |
| Form Size | 5 |
| Inside Body Diameter / Body Bore | 1.35 |
| Cable Range | 0.875 to 1 |
| Body Material | Aluminum |
| Flammability Rating | UL 94V-2 |
| CSA Specification | 28,985 |
| Package Quantity | 1 |
