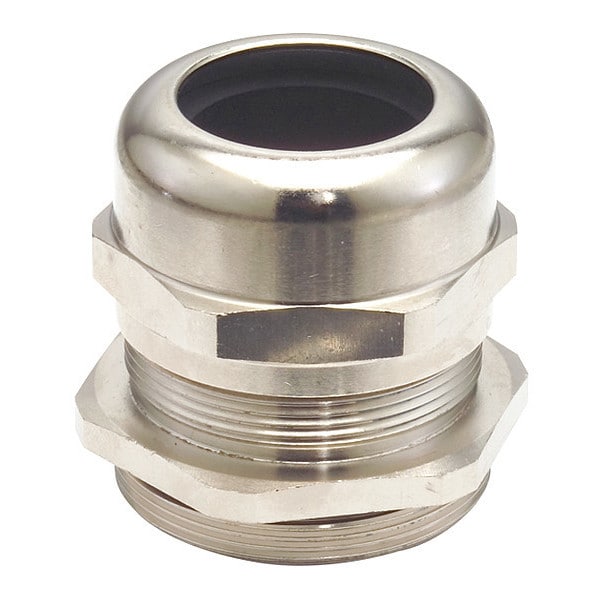

Cord Grip, EMC, Brass, 1-1/4", .866-1.26
| Item | Cord Grip,EMC,Brass,1-1/4",.866-1.26 |
|---|---|
| Conduit Size | 1.25 |
| Clearance Hole (in) | 1.969 |
| B Dimension (in) | 0.787 |
| Thread Size | 1.25 |
| Min Cable Range over Jacket (in) | 0.866 |
| Thread Type | NPT |
| Connector Material | Brass |
| IP Rating | IP68 - 5 Bar |
| C Dimension (in) | 1.96 |
| Cable Range | 0.866 to 1.26 |
| Maximum Operating Temperature (F) | 212 |
| A Dimension (in) | 1.66 |
| Maximum Operating Temperature (C) | 100 |
| Plating Type | Nickel |
| Maximum Knock Out Size (in) | 1.766 |
| Minimum Operating Temperature (C) | -20 |
| Bushing Holes | 1 |
| Bushing Material | Neoprene |
| Body Material | Brass |
| Minimum Operating Temperature (F) | -4 |
| Max Cable Range over Jacket (in) | 1.26 |
| Plating Color | Natural |
| Package Quantity | 1 |
