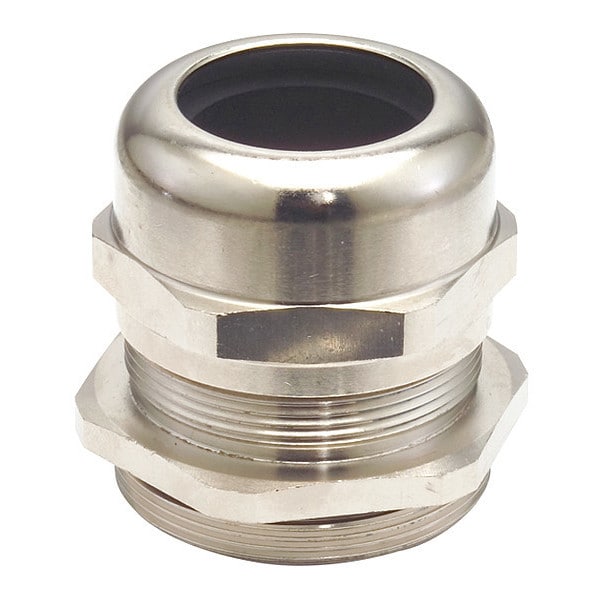

Cord Grip, EMC, Brass, M20, .295-.551
| Item | Cord Grip,EMC,Brass,M20,.295-.551 |
|---|---|
| Cord Grip Type | Straight |
| Clearance Hole (in) | 0.866 |
| B Dimension (in) | 0.236 |
| Thread Size | M20 |
| C Dimension (in) | 0.86 |
| IP Rating | IP68 - 5 Bar |
| A Dimension (in) | 0.79 |
| Minimum Operating Temperature (F) | -4 |
| Maximum Knock Out Size (in) | 0.867 |
| Max Cable Range over Jacket (in) | 0.551 |
| Plating Color | Natural |
| Cable Range | 0.295 to 0.551 |
| Bushing Material | Neoprene |
| Body Material | Brass |
| Maximum Operating Temperature (F) | 212 |
| Bushing Holes | 1 |
| UL Specification | E199260 |
| Min Cable Range over Jacket (in) | 0.295 |
| Maximum Operating Temperature (C) | 100 |
| Minimum Operating Temperature (C) | -20 |
| Connector Material | Brass |
| Plating Type | Nickel |
| Thread Type | Metric |
| Package Quantity | 1 |
