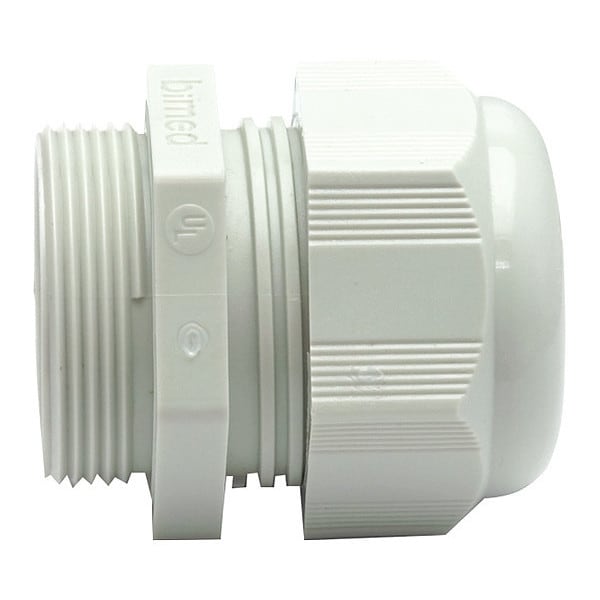

Cord Grip, Gray, Polyamide 3/8", .11-.28
| Item | Cord Grip,Gray,Polyamide 3/8",.11-.28 |
|---|---|
| Cord Grip Type | Straight |
| Minimum Operating Temperature (F) | -4 |
| Minimum Operating Temperature (C) | -20 |
| Inside Body Diameter / Body Bore | 0.541 |
| Thread Size | 44928 |
| A Dimension (in) | 0.86 |
| C Dimension (in) | 0.94 |
| Max Cable Range over Jacket (in) | 0.35 |
| Maximum Knock Out Size (in) | 0.906 |
| CSA Specification | 115,116 |
| Maximum Operating Temperature (C) | 80 |
| NEMA Rating | 6 |
| B Dimension (in) | 0.59 |
| Connector Material | Polyamide |
| Body Material | Polyamide |
| Select Color | Gray |
| Min Cable Range over Jacket (in) | 0.19 |
| Clearance Hole (in) | 0.906 |
| IP Rating | IP68 |
| Maximum Operating Temperature (F) | 176 |
| Thread Type | NPT |
| Bushing Material | Neoprene |
| Cable Range | 0.19 to 0.35 |
| Bushing Holes | 1 |
| UL Specification | E199260 |
| Package Quantity | 1 |
