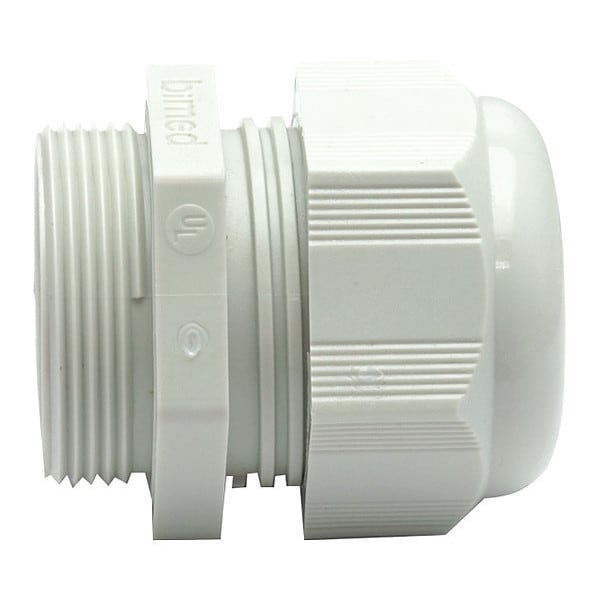

Cord Grip, Gry, Polyamide, PG21, .51-.71
| Item | Cord Grip,Gry,Polyamide,PG21,.51-.71 |
|---|---|
| Cord Grip Type | Straight |
| Select Color | Gray |
| Max Cable Range over Jacket (in) | 0.71 |
| Body Material | Polyamide |
| Clearance Hole (in) | 1.213 |
| UL Specification | E199260 |
| Maximum Knock Out Size (in) | 1.213 |
| Bushing Material | Neoprene |
| Minimum Operating Temperature (C) | -20 |
| IP Rating | IP68 |
| C Dimension (in) | 1.3 |
| Bushing Holes | 1 |
| Water Pressure (PSI) | 70 |
| Min Cable Range over Jacket (in) | 0.51 |
| B Dimension (in) | 0.43 |
| Connector Material | Polyamide |
| Thread Size | PG21 |
| Maximum Operating Temperature (F) | 176 |
| Thread Type | PG |
| Minimum Operating Temperature (F) | -4 |
| Cable Range | 0.51 to 0.71 |
| A Dimension (in) | 1.14 |
| Inside Body Diameter / Body Bore | 0.877 |
| Maximum Operating Temperature (C) | 80 |
| CSA Specification | 115,116 |
| NEMA Rating | 6 |
| Package Quantity | 1 |
