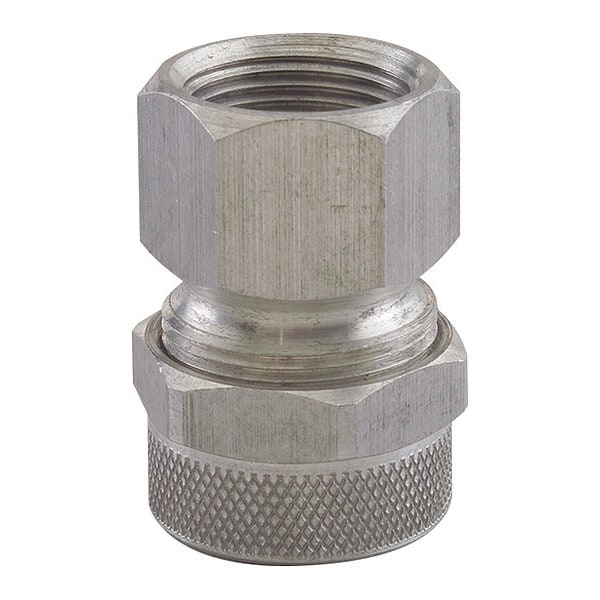

Cord Grip, Int Thrd, 1-1/4", 1.125-1.25
| Item | Cord Grip,Int Thrd,1-1/4",1.125-1.25 |
|---|---|
| Conduit Size | 1.25 |
| Cord Grip Type | Straight |
| Maximum Operating Temperature (C) | 121 |
| Cable Range | 1.125 to 1.25 |
| Inside Body Diameter / Body Bore | 1.442 |
| Thread Type | NPT |
| Clearance Hole (in) | 1.766 |
| D Dimension (in) | 2.75 |
| Flammability Rating | UL 94V-2 |
| Bushing Holes | 1 |
| Minimum Operating Temperature (C) | -40 |
| Max Cable Range over Jacket (in) | 1.25 |
| Hazardous Class/Division | Class 1, Div 2" |
| Thread Size | 1.25 |
| Maximum Knock Out Size (in) | 1.766 |
| CSA Specification | 28,985 |
| Connector Material | Aluminum |
| UL Specification | E53599 |
| Minimum Operating Temperature (F) | -40 |
| Body Material | Aluminum |
| F Dimension (in) | 2.55 |
| Min Cable Range over Jacket (in) | 1.125 |
| E Dimension (in) | 2.25 |
| Form Size | 5 |
| Maximum Operating Temperature (F) | 250 |
| Bushing Material | Neoprene |
| Package Quantity | 1 |
