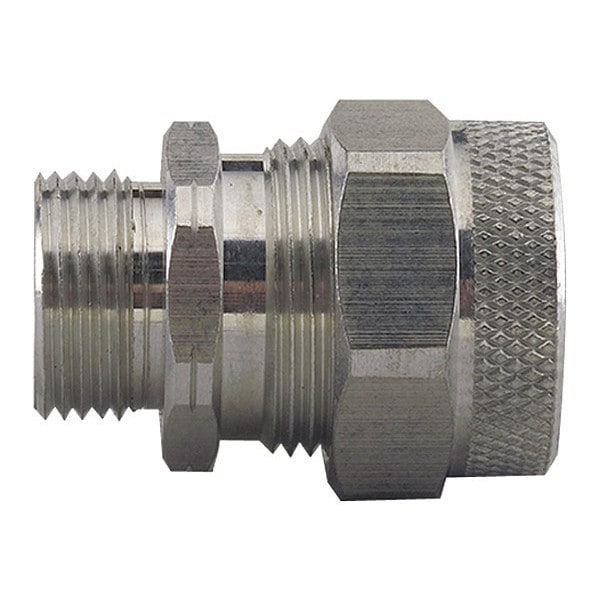

Cord Grip, ISO Thread, M25, .250-.312
| Item | Cord Grip,ISO Thread,M25,.250-.312 |
|---|---|
| Cord Grip Type | Straight |
| Maximum Operating Temperature (F) | 250 |
| Minimum Operating Temperature (F) | -40 |
| Body Material | Aluminum |
| Min Cable Range over Jacket (in) | 0.25 |
| Clearance Hole (in) | 1.083 |
| C Dimension (in) | 1.43 |
| Inside Body Diameter / Body Bore | 0.8 |
| Bushing Material | Neoprene |
| Thread Type | Metric |
| Maximum Operating Temperature (C) | 121 |
| Thread Size | M25 |
| Bushing Holes | 1 |
| A Dimension (in) | 0.8 |
| Max Cable Range over Jacket (in) | 0.312 |
| Maximum Knock Out Size (in) | 1.083 |
| Connector Material | Aluminum |
| Hazardous Class/Division | Class 1, Div 2" |
| B Dimension (in) | 0.39 |
| Flammability Rating | UL 94V-2 |
| Form Size | 2 |
| Minimum Operating Temperature (C) | -40 |
| Cable Range | 0.25 to 0.312 |
| E Dimension (in) | 1.53 |
| UL Specification | E53599 |
| D Dimension (in) | 1.38 |
| Package Quantity | 1 |
