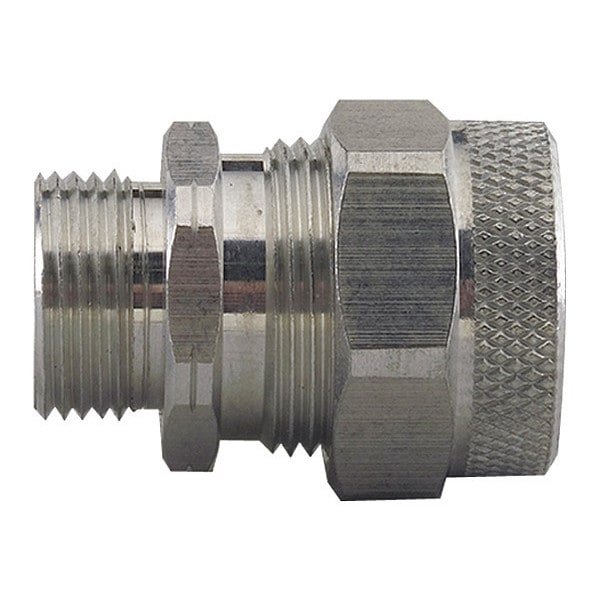

Cord Grip, ISO Thread, M50, .568-.688
| Item | Cord Grip,ISO Thread,M50,.568-.688 |
|---|---|
| Cord Grip Type | Straight |
| D Dimension (in) | 2.48 |
| B Dimension (in) | 0.39 |
| A Dimension (in) | 1.438 |
| E Dimension (in) | 2.48 |
| Body Material | Aluminum |
| Min Cable Range over Jacket (in) | 0.568 |
| Thread Size | M50 |
| Minimum Operating Temperature (F) | -40 |
| Thread Type | Metric |
| Maximum Operating Temperature (F) | 250 |
| Cable Range | 0.568 to 0.688 |
| Form Size | 5 |
| Hazardous Class/Division | Class 1, Div 2" |
| Maximum Knock Out Size (in) | 2.087 |
| Clearance Hole (in) | 2.087 |
| Max Cable Range over Jacket (in) | 0.688 |
| Bushing Material | Neoprene |
| Bushing Holes | 1 |
| Flammability Rating | UL 94V-2 |
| UL Specification | E53599 |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 121 |
| Inside Body Diameter / Body Bore | 1.438 |
| Connector Material | Aluminum |
| C Dimension (in) | 1.91 |
| Package Quantity | 1 |
