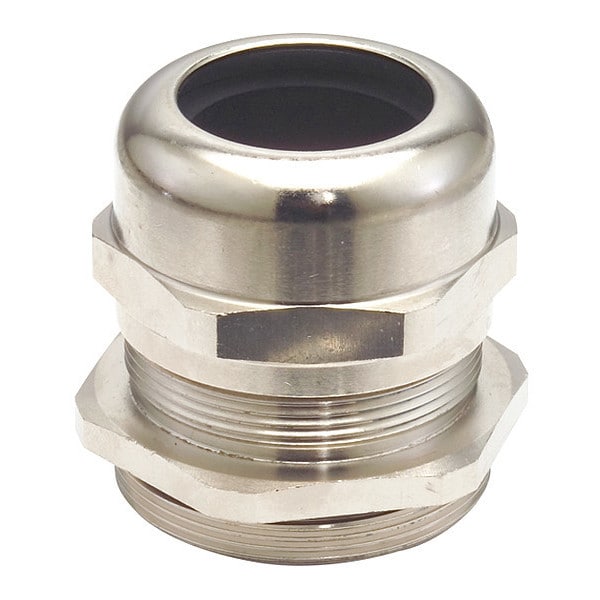

Cord Grip, Ni Plated Brass, 1/2", .24-.47
| Item | Cord Grip,Ni Plated Brass,1/2",.24-.47 |
|---|---|
| Plating Color | Natural |
| C Dimension (in) | 0.87 |
| Maximum Knock Out Size (in) | 0.906 |
| Thread Size | 44928 |
| A Dimension (in) | 0.83 |
| Bushing Material | Neoprene |
| B Dimension (in) | 0.51 |
| Connector Material | Nickel-Plated Brass |
| Cord Grip Type | Straight |
| IP Rating | IP68 |
| Maximum Operating Temperature (F) | 212 |
| Inside Body Diameter / Body Bore | 0.547 |
| Body Material | Brass |
| Thread type | NPT |
| Max Cable Range over Jacket (in) | 0.47 |
| Minimum Operating Temperature (F) | -4 |
| Cable Range | 0.24 to 0.47 |
| Plating Type | Nickel |
| Minimum Operating Temperature (C) | -20 |
| Clearance Hole (in) | 0.906 |
| Min Cable Range over Jacket (in) | 0.24 |
| Bushing Holes | 1 |
| Maximum Operating Temperature (C) | 100 |
| UL Specification | E199260 |
| Package Quantity | 1 |
