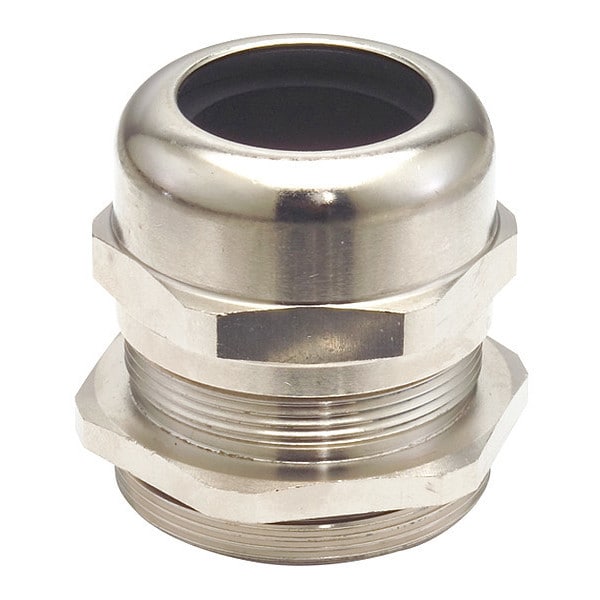

Cord Grip, Ni Plated Brass, M40, .71-.98
| Item | Cord Grip,Ni Plated Brass,M40,.71-.98 |
|---|---|
| Max Cable Range over Jacket (in) | 0.98 |
| Min Cable Range over Jacket (in) | 0.71 |
| Connector Material | Nickel-Plated Brass |
| Clearance Hole (in) | 1.701 |
| Thread Size | M40 |
| Inside Body Diameter / Body Bore | 1.124 |
| Bushing Holes | 1 |
| Bushing Material | Neoprene |
| Minimum Operating Temperature (C) | -20 |
| Maximum Knock Out Size (in) | 1.701 |
| Plating Color | Natural |
| B Dimension (in) | 0.35 |
| C Dimension (in) | 1.69 |
| Minimum Operating Temperature (F) | -4 |
| Maximum Operating Temperature (C) | 100 |
| Maximum Operating Temperature (F) | 212 |
| Thread type | Metric |
| Body Material | Brass |
| Cord Grip Type | Straight |
| A Dimension (in) | 1.57 |
| Cable Range | 0.71 to 0.98 |
| Plating Type | Nickel |
| UL Specification | E199260 |
| Package Quantity | 1 |
