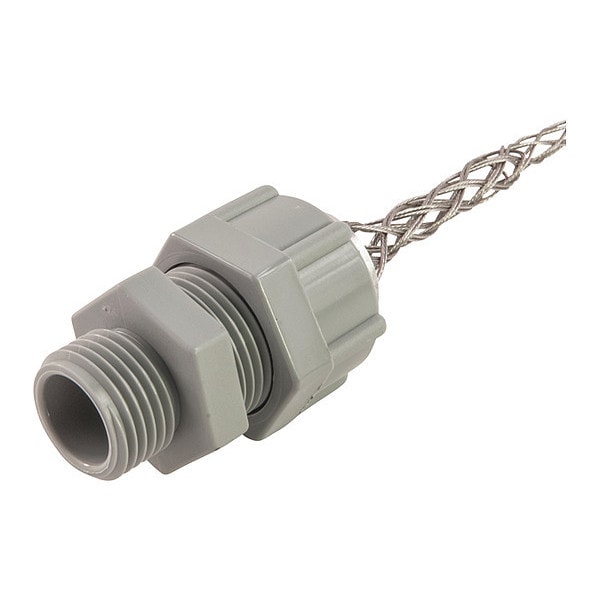

Cord Grip, Nylon, 3/4", .500-.562, Mesh
| Item | Cord Grip,Nylon,3/4",.500-.562,Mesh |
|---|---|
| Cord Grip Type | Straight |
| Minimum Operating Temperature (F) | -40 |
| Clearance Hole (in) | 1.141 |
| Connector Material | Nylon |
| Max Cable Range over Jacket (in) | 0.562 |
| Minimum Operating Temperature (C) | -40 |
| Maximum Knock Out Size (in) | 1.141 |
| Form Size | 3 |
| Body Material | Nylon |
| Cable Range | 0.5 to 0.562 |
| Maximum Operating Temperature (C) | 107 |
| Thread Size | 44989 |
| Min Cable Range over Jacket (in) | 0.5 |
| Conduit Size | 44,989 |
| Thread Type | NPSM |
| Inside Body Diameter / Body Bore | 0.76 |
| Hazardous Class/Division | Class 1, Div 2" |
| CSA Specification | 28,985 |
| Bushing Material | Neoprene |
| F Dimension (in) | 1.5 |
| Maximum Operating Temperature (F) | 225 |
| D Dimension (in) | 2.1 |
| E Dimension (in) | 1.38 |
| Bushing Holes | 1 |
| Package Quantity | 1 |
