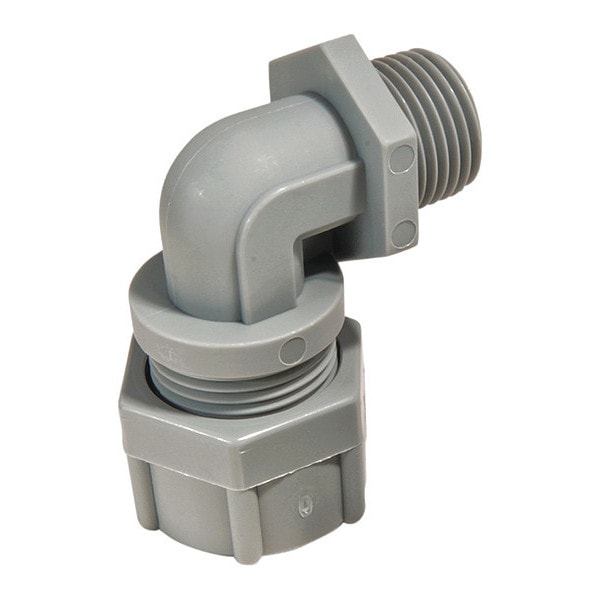

Cord Grip, Nylon, 90 deg., 3/4", .688-.812
| Item | Cord Grip,Nylon,90 deg.,3/4",.688-.812 |
|---|---|
| Conduit Size | 44,989 |
| Form Size | 3 |
| Min Cable Range over Jacket (in) | 0.688 |
| A Dimension (in) | 0.765 |
| Cord Grip Type | 90 Degree |
| Body Material | Nylon |
| Max Cable Range over Jacket (in) | 0.812 |
| Bushing Material | Neoprene |
| Bushing Holes | 1 |
| Maximum Operating Temperature (C) | 107 |
| CSA Specification | 28,985 |
| Minimum Operating Temperature (F) | -40 |
| C Dimension (in) | 2.04 |
| Hazardous Class/Division | Class 1, Div 2" |
| Maximum Operating Temperature (F) | 225 |
| Cable Range | 0.688 to 0.812 |
| Inside Body Diameter / Body Bore | 0.766 |
| Connector Material | Nylon |
| Thread type | NPSM |
| Minimum Operating Temperature (C) | -40 |
| B Dimension (in) | 0.58 |
| G Dimension (in) | 1.45 |
| F Dimension (in) | 1.71 |
| Maximum Knock Out Size (in) | 1.141 |
| Clearance Hole (in) | 1.141 |
| Thread Size | 44989 |
| Package Quantity | 1 |
