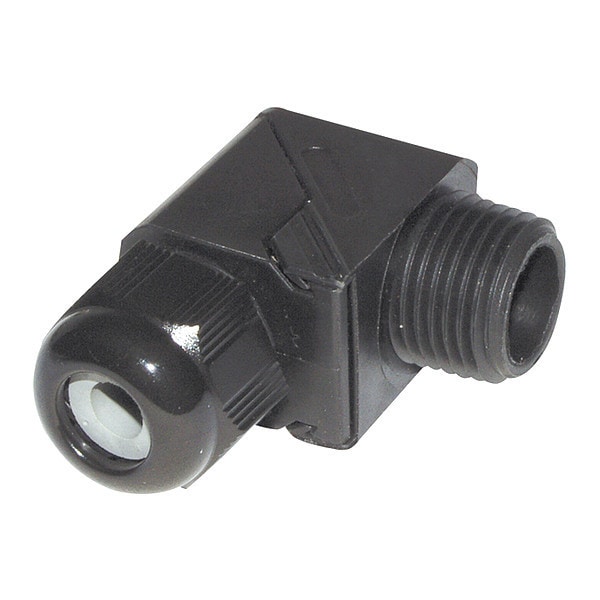

Cord Grip, Snap Elbow, 1/2", .11-.27
| Item | Cord Grip,Snap Elbow,1/2",.11-.27 |
|---|---|
| C Dimension (in) | 0.94 |
| Minimum Operating Temperature (C) | -40 |
| A Dimension (in) | 0.82 |
| Min Cable Range over Jacket (in) | 0.11 |
| IP Rating | IP68 |
| Thread Type | NPT |
| Inside Body Diameter / Body Bore | 0.549 |
| Connector Material | Nylon |
| Maximum Operating Temperature (F) | 225 |
| Body Material | Nylon |
| Minimum Operating Temperature (F) | -40 |
| Bushing Material | Neoprene |
| Max Cable Range over Jacket (in) | 0.27 |
| Bushing Holes | 1 |
| Maximum Knock Out Size (in) | 0.906 |
| Clearance Hole (in) | 0.906 |
| B Dimension (in) | 0.75 |
| Thread Size | 44928 |
| Cord Grip Type | 90 Degree |
| D Dimension (in) | 1.2 |
| Maximum Operating Temperature (C) | 107 |
| Cable Range | 0.11 to 0.27 |
| Package Quantity | 1 |
