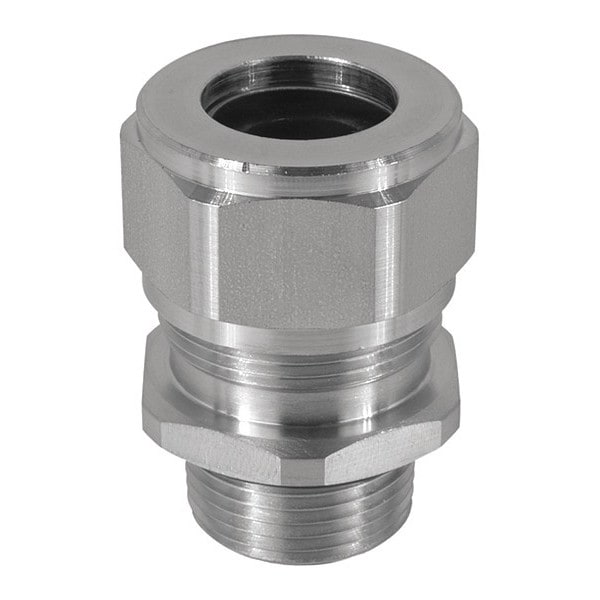

Cord Grip, SS, 2" NPT, 1.438-1.562 Size 6
| Item | Cord Grip,SS,2" NPT,1.438-1.562 Size 6 |
|---|---|
| Conduit Size | 2 |
| Cord Grip Type | Straight |
| Inside Body Diameter / Body Bore | 2 |
| Maximum Operating Temperature (C) | 121 |
| Plating Type | Passivated |
| CSA Specification | 28,985 |
| Bushing Holes | 1 |
| Flammability Rating | UL 94V-2 |
| Clearance Hole (in) | 2.5 |
| Cable Range | 1.438 to 1.562 |
| D Dimension (in) | 2.83 |
| Min Cable Range over Jacket (in) | 1.438 |
| UL Specification | E53599 |
| Maximum Knock Out Size (in) | 2.5 |
| Thread Type | NPT |
| Bushing Material | Neoprene |
| Thread Size | 2 |
| A Dimension (in) | 2 |
| B Dimension (in) | 0.8 |
| Form Size | 6 |
| Max Cable Range over Jacket (in) | 1.562 |
| Body Material | Stainless Steel |
| Maximum Operating Temperature (F) | 250 |
| Minimum Operating Temperature (F) | -40 |
| Connector Material | Stainless Steel |
| C Dimension (in) | 2.43 |
| Plating Color | Natural |
| E Dimension (in) | 2.97 |
| Minimum Operating Temperature (C) | -40 |
| Package Quantity | 1 |
