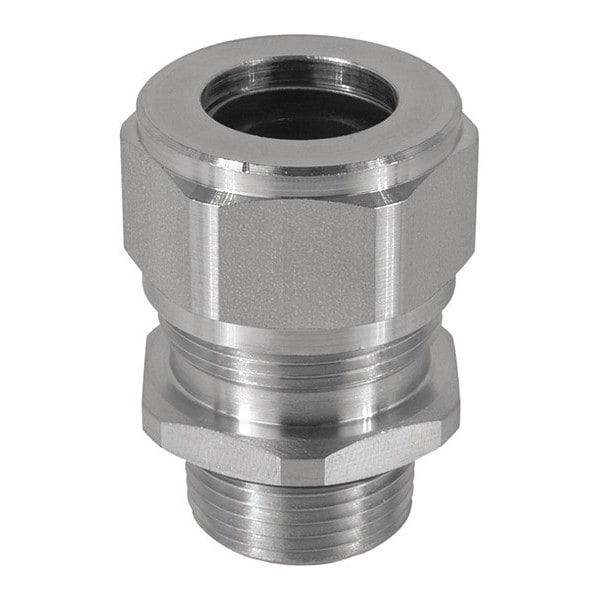

Cord Grip, SS, 3/8" NPT, .375-.438
| Item | Cord Grip,SS,3/8" NPT,.375-.438 |
|---|---|
| Conduit Size | 44,993 |
| Cord Grip Type | Straight |
| Plating Type | Passivated |
| Clearance Hole (in) | 0.701 |
| E Dimension (in) | 0.96 |
| Thread Size | 44993 |
| Thread Type | NPT |
| Min Cable Range over Jacket (in) | 0.375 |
| C Dimension (in) | 0.88 |
| A Dimension (in) | 0.47 |
| Plating Color | Natural |
| Inside Body Diameter / Body Bore | 0.47 |
| Maximum Knock Out Size (in) | 0.701 |
| B Dimension (in) | 0.44 |
| Minimum Operating Temperature (F) | -40 |
| Connector Material | Stainless Steel |
| Flammability Rating | UL 94V-2 |
| Form Size | 1 |
| Maximum Operating Temperature (C) | 121 |
| Body Material | Stainless Steel |
| Cable Range | 0.375 to 0.438 |
| CSA Specification | 28,985 |
| Minimum Operating Temperature (C) | -40 |
| Max Cable Range over Jacket (in) | 0.438 |
| Bushing Material | Neoprene |
| D Dimension (in) | 0.94 |
| Maximum Operating Temperature (F) | 250 |
| Bushing Holes | 1 |
| UL Specification | E53599 |
| Package Quantity | 1 |
