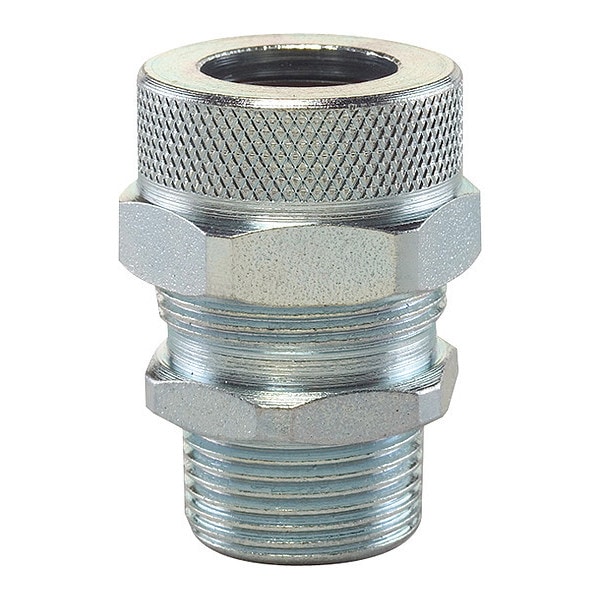

Cord Grip, Steel, 1-1/4" NPT, 1.125-1.250
| Item | Cord Grip,Steel,1-1/4" NPT,1.125-1.250 |
|---|---|
| Conduit Size | 1.25 |
| Cord Grip Type | Straight |
| Flammability Rating | UL 94V-2 |
| C Dimension (in) | 1.8 |
| Maximum Knock Out Size (in) | 1.766 |
| E Dimension (in) | 2 |
| Max Cable Range over Jacket (in) | 1.25 |
| Min Cable Range over Jacket (in) | 1.125 |
| Plating Type | Zinc |
| A Dimension (in) | 1.32 |
| Plating Color | Natural |
| Bushing Holes | 1 |
| Inside Body Diameter / Body Bore | 1.346 |
| Connector Material | Steel |
| Bushing Material | Neoprene |
| Thread Size | 1.25 |
| Hazardous Class/Division | Class 1, Div 2" |
| UL Specification | E53599 |
| Thread Type | NPT |
| B Dimension (in) | 0.69 |
| Cable Range | 1.125 to 1.25 |
| Maximum Operating Temperature (F) | 250 |
| Form Size | 5 |
| Clearance Hole (in) | 1.766 |
| CSA Specification | 28,985 |
| Body Material | Steel |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 121 |
| Minimum Operating Temperature (F) | -40 |
| D Dimension (in) | 2 |
| Package Quantity | 1 |
