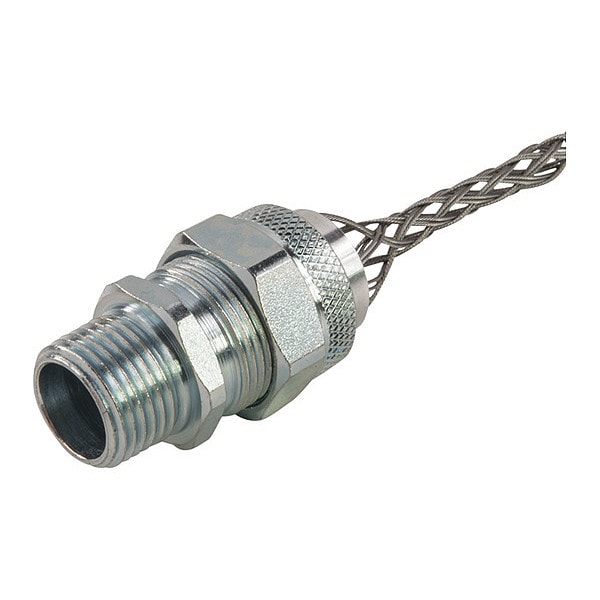

Cord Grip, Steel, 1" NPT, .875-1.00, Mesh
| Item | Cord Grip,Steel,1" NPT,.875-1.00,Mesh |
|---|---|
| Cord Grip Type | Straight |
| Form Size | 4 |
| Thread Size | 1 |
| C Dimension (in) | 0.94 |
| E Dimension (in) | 1.56 |
| Clearance Hole (in) | 1.406 |
| Cable Range | 0.875 to 1 |
| Flammability Rating | UL 94HB |
| CSA Specification | 28,985 |
| Max Cable Range over Jacket (in) | 1 |
| Minimum Operating Temperature (F) | -40 |
| D Dimension (in) | 1.43 |
| Bushing Material | Neoprene |
| Hazardous Class/Division | Class 1, Div 2" |
| Body Material | Steel |
| Maximum Operating Temperature (C) | 121 |
| Plating Type | Zinc |
| Min Cable Range over Jacket (in) | 0.875 |
| Conduit Size | 1 |
| Plating Color | Natural |
| Maximum Operating Temperature (F) | 250 |
| Bushing Holes | 1 |
| Thread Type | NPT |
| B Dimension (in) | 0.63 |
| Minimum Operating Temperature (C) | -40 |
| UL Specification | E53599 |
| Maximum Knock Out Size (in) | 1.406 |
| Inside Body Diameter / Body Bore | 1 |
| Connector Material | Steel |
| A Dimension (in) | 0.99 |
| Package Quantity | 1 |
