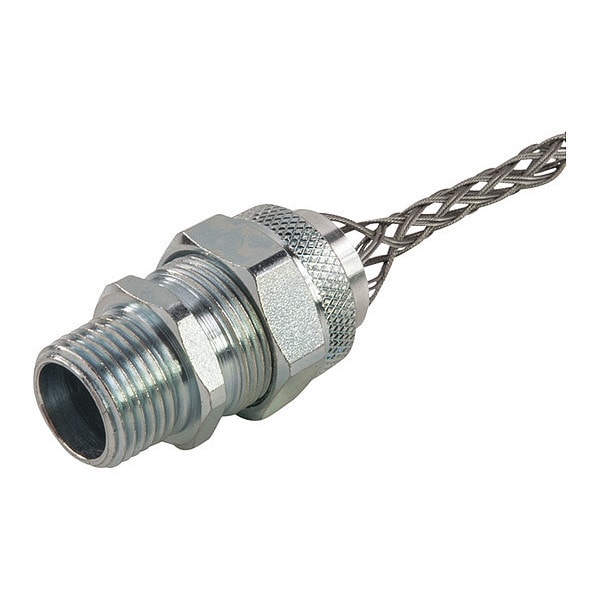

Cord Grip, Steel, 1/2", .250-.312, Mesh
| Item | Cord Grip,Steel,1/2",.250-.312,Mesh |
|---|---|
| Cord Grip Type | Straight |
| Connector Material | Steel |
| Cable Range | 0.25 to 0.312 |
| Clearance Hole (in) | 0.906 |
| Flammability Rating | UL 94HB |
| Thread Size | 44928 |
| Body Material | Steel |
| E Dimension (in) | 1.26 |
| Conduit Size | 44,928 |
| D Dimension (in) | 1 |
| Minimum Operating Temperature (C) | -40 |
| Form Size | 2 |
| Thread Type | NPT |
| Maximum Knock Out Size (in) | 0.906 |
| Bushing Holes | 1 |
| Maximum Operating Temperature (F) | 250 |
| A Dimension (in) | 0.62 |
| Maximum Operating Temperature (C) | 121 |
| Bushing Material | Neoprene |
| Minimum Operating Temperature (F) | -40 |
| UL Specification | E53599 |
| Min Cable Range over Jacket (in) | 0.25 |
| Plating Type | Zinc |
| CSA Specification | 28,985 |
| C Dimension (in) | 0.69 |
| Max Cable Range over Jacket (in) | 0.312 |
| Hazardous Class/Division | Class 1, Div 2" |
| B Dimension (in) | 0.56 |
| Inside Body Diameter / Body Bore | 0.61 |
| Plating Color | Natural |
| Package Quantity | 1 |
