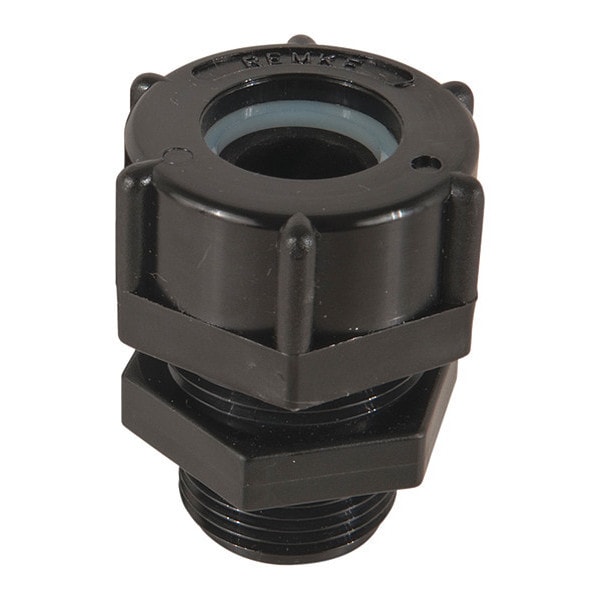

Cord Grip, Valox, 1/2" NPT, .500-.562
| Item | Cord Grip,Valox,1/2" NPT,.500-.562 |
|---|---|
| Conduit Size | 44,928 |
| Cord Grip Type | Straight |
| Maximum Operating Temperature (F) | 250 |
| Minimum Operating Temperature (F) | -40 |
| Maximum Operating Temperature (C) | 121 |
| Form Size | 2 |
| Bushing Holes | 1 |
| Cable Range | 0.5 to 0.562 |
| Clearance Hole (in) | 0.906 |
| Maximum Knock Out Size (in) | 0.906 |
| Minimum Operating Temperature (C) | -40 |
| Thread Size | 44928 |
| Thread Type | NPSM |
| Body Material | Valox |
| D Dimension (in) | 2.01 |
| Connector Material | Valox |
| E Dimension (in) | 1.12 |
| CSA Specification | 28,985 |
| Inside Body Diameter / Body Bore | 0.57 |
| Bushing Material | Neoprene |
| Max Cable Range over Jacket (in) | 0.562 |
| F Dimension (in) | 1.25 |
| Min Cable Range over Jacket (in) | 0.5 |
| Package Quantity | 1 |
