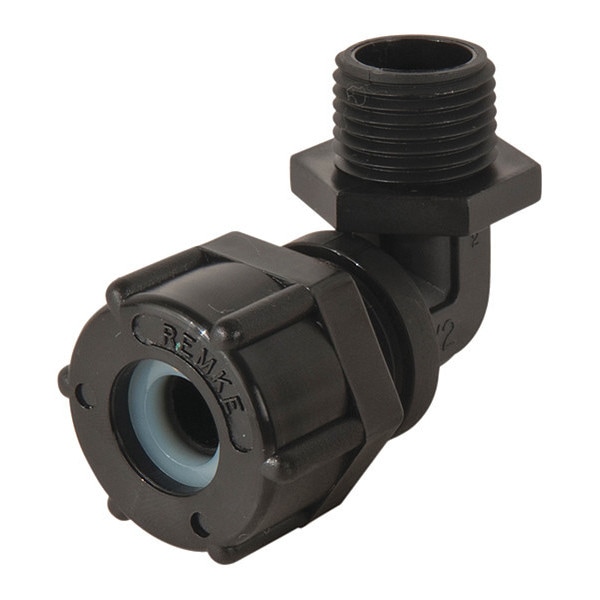

Cord Grip, Valox, 3/4" NPT, .562-.625
| Item | Cord Grip,Valox,3/4" NPT,.562-.625 |
|---|---|
| Conduit Size | 44,989 |
| Cord Grip Type | 90 Degree |
| Cable Range | 0.562 to 0.625 |
| Min Cable Range over Jacket (in) | 0.562 |
| Thread Type | NPT |
| Form Size | 3 |
| Max Cable Range over Jacket (in) | 0.625 |
| A Dimension (in) | 0.766 |
| Connector Material | Valox |
| Maximum Knock Out Size (in) | 1.141 |
| F Dimension (in) | 1.71 |
| Maximum Operating Temperature (F) | 250 |
| Bushing Holes | 1 |
| B Dimension (in) | 0.58 |
| D Dimension (in) | 2.04 |
| Minimum Operating Temperature (F) | -40 |
| Bushing Material | Neoprene |
| C Dimension (in) | 0.88 |
| Thread Size | 44989 |
| Clearance Hole (in) | 1.141 |
| CSA Specification | 28,985 |
| Inside Body Diameter / Body Bore | 0.766 |
| Maximum Operating Temperature (C) | 121 |
| Minimum Operating Temperature (C) | -40 |
| Body Material | Valox |
| Package Quantity | 1 |
