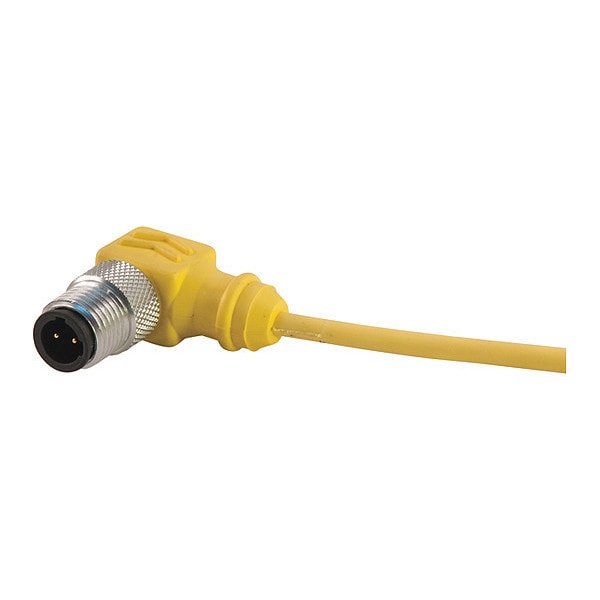

Cordset, Dual Key, PUR, Male, 2 Pole, 6 ft.
| Item | Cordset,Dual Key,PUR,Male,2 Pole,6 ft. |
|---|---|
| NEMA Rating | 6P |
| IP Rating | IP67 |
| Body Material | PUR |
| Contact Material | Brass, Gold, Nickel" |
| Cable Jacket Color | Yellow |
| Conductor Color 1 | Brown |
| Cable Jacket Material | PUR |
| Height (in) | 1.26 |
| CSA Specification | E165657 |
| O-Ring Material | Nitrile Rubber |
| Connector Style | MicroLink Dual Key |
| cRU Specification | E165657 |
| Voltage Rating (DC) | 300 |
| Length (in) | 1.25 |
| Minimum Operating Temperature (F) | -4 |
| Wiring Color Code | Auto CC |
| Minimum Operating Temperature (C) | -20 |
| Cable Jacket Outer Diameter (in) | 0.23 |
| Voltage Rating (AC) | 250 |
| Cable Code | Auto |
| Maximum Operating Temperature (F) | 176 |
| Poles | 2 |
| Tab Info | CRT,Coupling Nut Mtl,IP Ratings,Cable Cross,Cable Jacket Mtl,Knockout Dim,ROHS,TL APP |
| Cordset Configuration | 90 Degree |
| Cable Length (ft) | 6 |
| Current Rating (amps) | 4 |
| Insert Material | Nylon |
| Contact Resistance (Micro Ohms) | 5 |
| Width (in) | 0.57 |
| Conductor Color 2 | Blue |
| Wire Gauge | 22 AWG |
| Maximum Operating Temperature (C) | 80 |
| Contact Carrier Material | Nylon |
| Coupling Nut Plating | Clear Anodized |
| Coupling Nut Material | Aluminum |
| Package Quantity | 1 |
