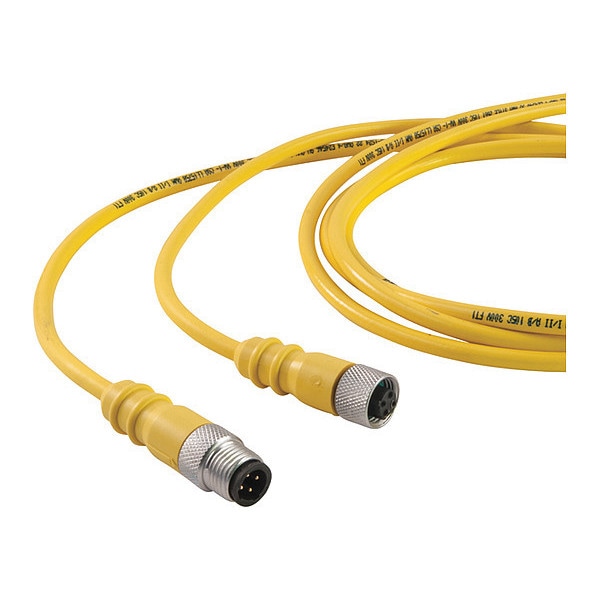

Cordset, Dual Key, PVC, M/Fem, 5 Pole, 6 ft.
| Item | Cordset,Dual Key,PVC,M/Fem,5 Pole,6 ft. |
|---|---|
| IP Rating | IP67 |
| NEMA Rating | 6P |
| Body Material | PVC |
| Contact Material | Brass, Gold, Nickel" |
| Cable Jacket Outer Diameter (in) | 0.26 |
| Current Rating (amps) | 4 |
| Thread 1 | 1/2-20 UNF |
| Minimum Operating Temperature (F) | -4 |
| O-Ring Material | Nitrile Rubber |
| Tab Info | TL APP,Knockout Dim,Cable Jacket Mtl,CRT,ROHS,Cable Cross,IP Ratings,Coupling Nut Mtl |
| Conductor Color 1 | Red, White |
| Thread 2 | 1/2-20 UNF |
| Cordset Configuration | Straight/Straight |
| Conductor Color 4 | Red, Yellow |
| Conductor Color 3 | Green |
| Wiring Color Code | Auto CC |
| Voltage Rating (AC) | 250 |
| Length (in) 2 | 1.85 |
| Cable Length (ft) | 6 |
| Minimum Operating Temperature (C) | -20 |
| Conductor Color 5 | Black, Red |
| Length (in) | 2.02 |
| Cable Code | Auto |
| Maximum Operating Temperature (F) | 221 |
| Cable Jacket Color | Yellow |
| Conductor Color 2 | Red, White |
| cRU Specification | E165657 |
| Cable Jacket Material | PVC |
| Insert Material | Nylon |
| Width (in) | 0.57 |
| Cable Strand | 26 X #36 |
| Width (in) 2 | 0.57 |
| CSA Specification | E165657 |
| Contact Resistance (Micro Ohms) | 5 |
| Contact Carrier Material | Nylon |
| Poles | 5 |
| Maximum Operating Temperature (C) | 105 |
| Wire Gauge | 22 AWG |
| Voltage Rating (DC) | 300 |
| Coupling Nut Plating | Clear Anodized |
| Coupling Nut Material | Aluminum |
| Connector Style | MicroLink Dual Key |
| Package Quantity | 1 |
