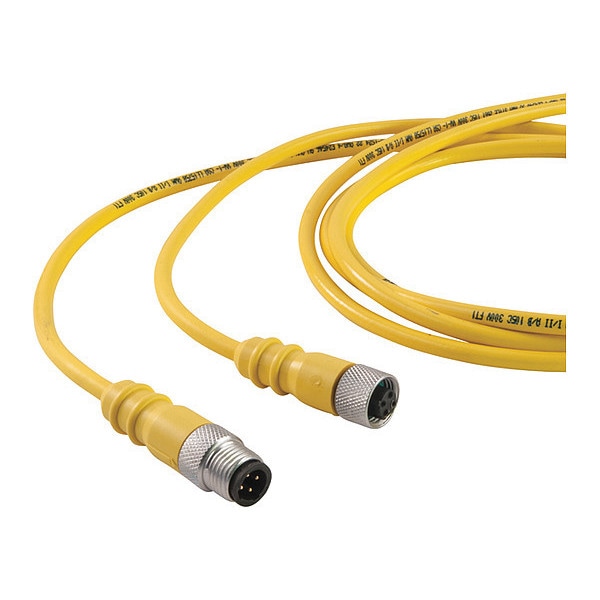

Cable de conexión con doble llave, fabricado en TPE, con conector macho/hembra de 3 polos y 6 pies de longitud. Ideal para aplicaciones industriales y comerciales.
| Item | Cordset,Dual Key,TPE,M/Fem,3 Pole,6 ft. |
|---|---|
| NEMA Rating | 6P |
| Body Material | PUR |
| IP Rating | IP67 |
| Contact Material | Brass, Gold, Nickel" |
| CSA Specification | E165657 |
| Conductor Color 2 | Red, Black |
| Cable Length (ft) | 6 |
| Voltage Rating (DC) | 300 |
| Cable Strand | 41 X #34 |
| Wire Gauge | 18 AWG |
| Minimum Operating Temperature (F) | -4 |
| Minimum Operating Temperature (C) | -20 |
| Poles | 3 |
| Thread 1 | 1/2-20 UNF |
| Conductor Color 3 | Red, White |
| Cordset Configuration | Straight/Straight |
| Coupling Nut Material | Aluminum |
| Thread 2 | 1/2-20 UNF |
| Wiring Color Code | Auto CC |
| Current Rating (amps) | 5 |
| cRU Specification | E165657 |
| Length (in) | 2.02 |
| Conductor Color 1 | Green |
| Connector Style | MicroLink Dual Key |
| Cable Jacket Color | Yellow |
| Length (in) 2 | 1.85 |
| Maximum Operating Temperature (C) | 80 |
| Cable Code | Auto |
| Maximum Operating Temperature (F) | 176 |
| Width (in) 2 | 0.57 |
| Contact Resistance (Micro Ohms) | 5 |
| Contact Carrier Material | Nylon |
| Width (in) | 0.57 |
| O-Ring Material | Nitrile Rubber |
| Voltage Rating (AC) | 250 |
| Cable Jacket Outer Diameter (in) | 0.26 |
| Insert Material | Nylon |
| Coupling Nut Plating | Clear Anodized |
| Tab Info | IP Ratings,Cable Jacket Mtl,ROHS,Cable Cross,TL APP,Coupling Nut Mtl,Knockout Dim,CRT |
| Cable Jacket Material | TPE |
| Package Quantity | 1 |
