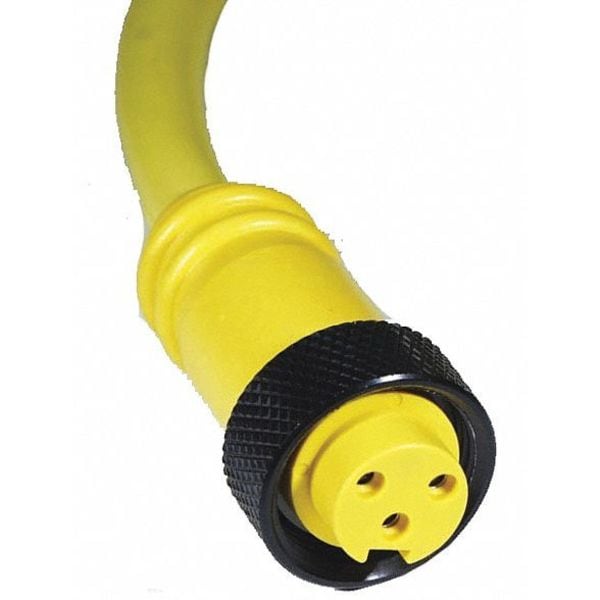

Cable de conexión, Conjunto Mini-Link, PVC, Hembra, 2 Pines, 20 pies.
| Item | Mini Link Plug Assembly |
|---|---|
| Cable Length | 20 ft |
| Jacket Color | Yellow |
| Max. Voltage | 600VAC/VDC |
| Wire Size | 16 AWG |
| Features | Nickel Coated Then Gold Plated Contacts For Enhanced Corrosion Resistance and Conductivity; Pins and Contacts Crimped Onto Wires Assuring Secure Terminations; Precision Machined Contacts For Highly Accurate Tolerances; Heavy-Duty SOOW, SJOOW or STOW Cable Options; Integral Strain Relief and Plated Coupling Nuts |
| Max. Amps | 13 |
| IP Rating | IP67 |
| For Use With | 12 and 18mm Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids And Hydraulic Valves; Foot Operated Switches; Power Tools; Cranes, Hoists and their Controls |
| Temp. Range | -58 to 356 deg F |
| Body Material | PVC |
| NEMA Rating | 6P |
| Color | White, Black |
| Number of Conductors | 2 |
| Wiring Color Code | Auto CC |
| Contact Resistance (Micro Ohms) | 5 |
| Maximum Operating Temperature (F) | 356 |
| Length (in) | 2.24 |
| Cable Code | Auto |
| Coupling Nut Material | Aluminum |
| Wire Gauge | 16 AWG |
| cRU Specification | E165657 |
| Voltage Rating (DC) | 600 |
| Current Rating (amps) | 13 |
| Insert Material | PVC |
| Cable Jacket Material | PVC |
| CSA Specification | E165657 |
| Voltage Rating (AC) | 600 |
| Cable Strand | 65 X #34 |
| Connector Style | MiniLink |
| Cable Jacket Outer Diameter (in) | 0.37 |
| Conductor Color 1 | White |
| Contact Material | Brass Plated, Gold, Nickel" |
| Contact Sleeve | Stainless Steel |
| Cable Length (ft) | 20 |
| Thread 1 | 7/8-16 UNS |
| Width (in) | 1 |
| Poles | 2 |
| Coupling Nut Plating | Black Anodized |
| Contact Carrier Material | PVC |
| Minimum Operating Temperature (F) | -58 |
| Cordset Configuration | Straight |
| Conductor Color 2 | Black |
| Cable Jacket Color | Yellow |
| Package Quantity | 1 |
