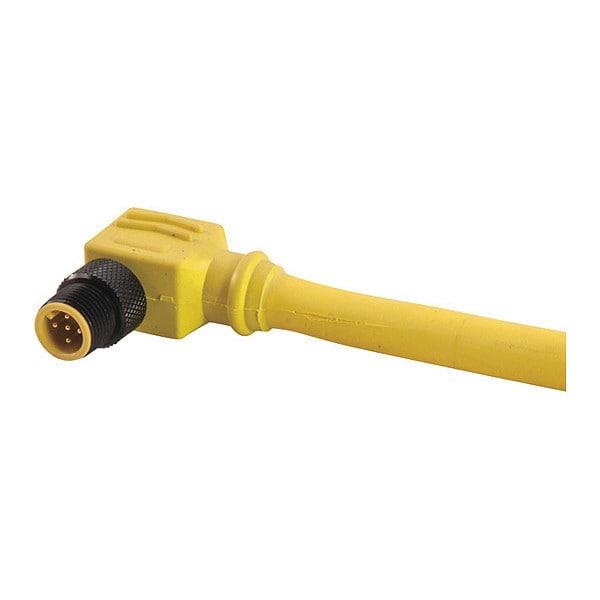

Cable conector, llave única, PUR, macho, 5 polos, 6.6 pies.
| Item | Single Key Micro Link Plug Assembly |
|---|---|
| Cable Length | 6.6 ft |
| Jacket Color | Yellow |
| Max. Voltage | 250VAC/300VDC |
| Wire Size | 22 AWG |
| Max. Amps | 4 |
| IP Rating | IP67 |
| Features | Machined Contacts(Instead Of Stamped Contacts) for Highly Accurate Tolerances; Gold-Plated Contacts for Enhanced Corrosion Resistance and Conductivity; High Impact Resistant Contact Carriers for Longer Product Life; Vibration Resistant Design so the Connector will Stay Securely Fastened to the Sensor or Mating Receptacle; Fast and Easy Replacement of 12mm to 18mm Sensors; Switches and Control Components; Shielded and Splitter Styles |
| For Use With | Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids; Hydraulic And Pneumatic Valves |
| Body Material | PUR |
| NEMA Rating | 6P |
| Number of Conductors | 5 |
| Temp. Range | -4 to 176 deg F |
| Color | Brown, White, Blue, Black, Gray |
| Conductor Color 4 | Black |
| Cable Jacket Outer Diameter (in) | 0.26 |
| Current Rating (amps) | 4 |
| Connector Style | MicroLink Single Key |
| Cable Length (ft) | 6.6 |
| Insert Material | Nylon |
| Cordset Configuration | 90 Degree |
| Voltage Rating (DC) | 300 |
| Conductor Color 1 | Brown |
| CSA Specification | E165657 |
| Coupling Nut Material | Aluminum |
| Conductor Color 3 | Blue |
| Contact Carrier Material | Nylon |
| Coupling Nut Plating | Black Anodized |
| Length (in) | 1.25 |
| Cable Jacket Material | PUR |
| Minimum Operating Temperature (F) | -4 |
| Contact Resistance (Micro Ohms) | 5 |
| Conductor Color 2 | White |
| Wiring Color Code | Euro CC |
| Thread 1 | M12X1 |
| Height (in) | 1.26 |
| Contact Material | Brass Plated, Gold, Nickel" |
| Voltage Rating (AC) | 250 |
| Cable Code | Euro |
| O-Ring Material | Nitrile Rubber |
| Maximum Operating Temperature (F) | 176 |
| Conductor Color 5 | Gray |
| Width (in) | 0.57 |
| Cable Jacket Color | Yellow |
| Wire Gauge | 22 AWG |
| cRU Specification | E165657 |
| Poles | 5 |
| Package Quantity | 1 |
