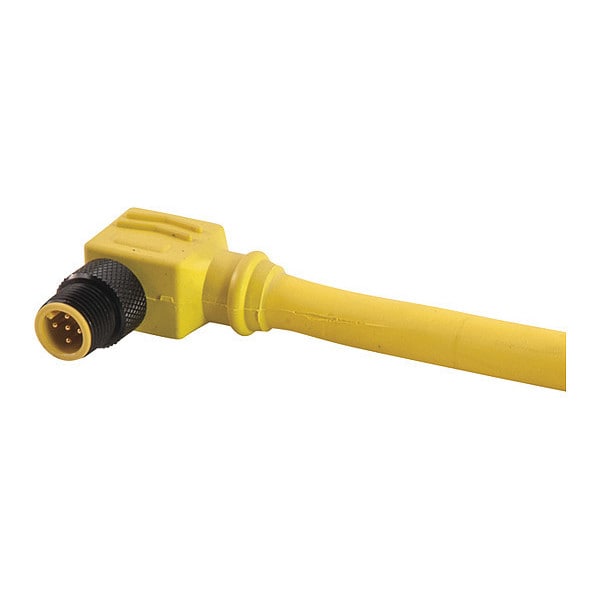

Cordset, Single Key, TPE, M, 5 Pole, 13.1 ft.
| Item | Cordset,Single Key,TPE,M,5 Pole,13.1 ft. |
|---|---|
| IP Rating | IP67 |
| NEMA Rating | 6P |
| Body Material | PUR |
| Contact Material | Brass, Gold, Nickel" |
| Poles | 5 |
| Conductor Color 3 | Blue |
| Coupling Nut Material | Aluminum |
| Cable Code | Euro |
| Tab Info | Knockout Dim,CRT,Cable Jacket Mtl,IP Ratings,ROHS,Coupling Nut Mtl,TL APP,Cable Cross |
| Insert Material | Nylon |
| Height (in) | 1.26 |
| Cable Strand | 41 X #34 |
| Minimum Operating Temperature (C) | -20 |
| Current Rating (amps) | 5 |
| Cable Jacket Color | Yellow |
| CSA Specification | E165657 |
| Contact Resistance (Micro Ohms) | 5 |
| Wire Gauge | 18 AWG |
| Conductor Color 1 | Brown |
| Contact Carrier Material | Nylon |
| Cable Length (ft) | 13.1 |
| Length (in) | 1.25 |
| Voltage Rating (DC) | 300 |
| Minimum Operating Temperature (F) | -4 |
| Conductor Color 4 | Black |
| Voltage Rating (AC) | 250 |
| Connector Style | MicroLink Single Key |
| Cordset Configuration | 90 Degree |
| Cable Jacket Outer Diameter (in) | 0.26 |
| Cable Jacket Material | TPE |
| Width (in) | 0.57 |
| cRU Specification | E165657 |
| Maximum Operating Temperature (C) | 80 |
| O-Ring Material | Nitrile Rubber |
| Thread 1 | M12X1 |
| Conductor Color 2 | White |
| Wiring Color Code | Euro CC |
| Conductor Color 5 | Gray |
| Coupling Nut Plating | Black Anodized |
| Maximum Operating Temperature (F) | 176 |
| Package Quantity | 1 |
