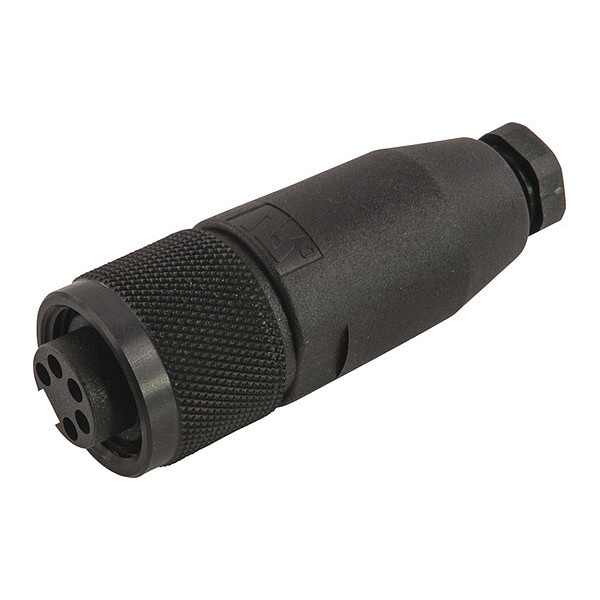

Conector para campo adjunto, Mini, 5 polos, F, PG11
| Item | Field Attachable Conn,Mini,5 Pole,F,PG11 |
|---|---|
| NEMA Rating | 6P |
| Body Material | Nylon |
| IP Rating | IP67 |
| Coupling Nut Material | Aluminum |
| cRU Specification | E165657 |
| Length (in) | 3.31 |
| Width (in) | 1.06 |
| Coupling Nut Plating | Black Anodized |
| Minimum Operating Temperature (F) | -4 |
| Poles | 5 |
| Cable Entry Type | PG11 |
| Contact Carrier Material | PUR |
| Voltage Rating (AC) | 250 |
| Insert Material | Nylon |
| Voltage Rating (DC) | 250 |
| Maximum Operating Temperature (F) | 194 |
| Current Rating (amps) | 9 |
| Contact Material | Brass Plated, Gold, Nickel" |
| Connector Style | MiniLink |
| Cordset Configuration | Straight |
| Thread 1 | 7/8-16 UNS |
| Package Quantity | 1 |
