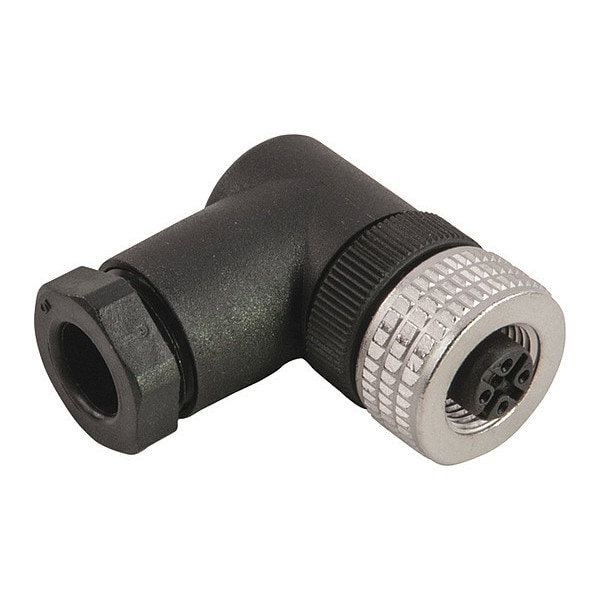

Accesorio de campo, terminal individual de 5 polos, hembra, PG9.
| Item | Field Attachable,Single Ky 5 Pole,F,PG9 |
|---|---|
| NEMA Rating | 6P |
| Body Material | Nylon |
| IP Rating | IP67 |
| Cordset Configuration | 90 Degree |
| Insert Material | Nylon |
| Contact Resistance (Micro Ohms) | 5 |
| Voltage Rating (AC) | 30 |
| Coupling Nut Material | Brass |
| Maximum Operating Temperature (F) | 194 |
| Cable Entry Type | PG9 |
| Contact Material | ", Copper Alloy, Gold Plated |
| Thread 1 | M12X1 |
| Contact Carrier Material | Nylon |
| Minimum Operating Temperature (F) | -13 |
| Coupling Nut Plating | Nickel Plated |
| Width (in) | 0.79 |
| Length (in) | 1.35 |
| O-Ring Material | Nitrile Rubber |
| Voltage Rating (DC) | 36 |
| Poles | 5 |
| Connector Style | MicroLink Single Key |
| Current Rating (amps) | 4 |
| Package Quantity | 1 |
