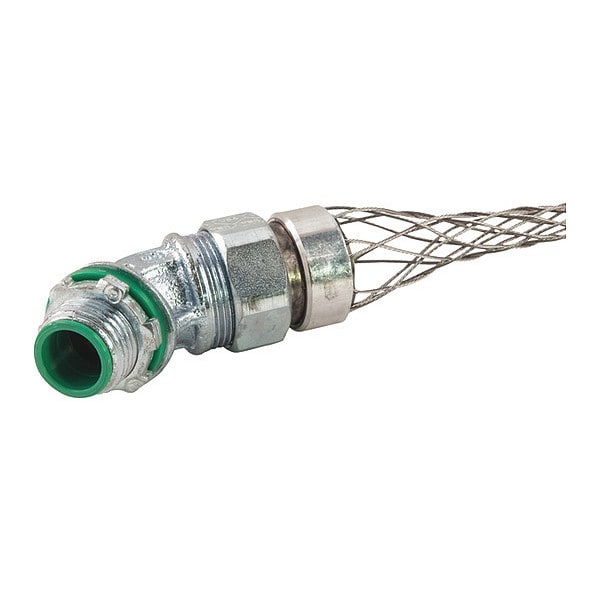

Liqua-Seal Conn, 1-1/2", Zinc Plated, Mesh
| Item | Liqua-Seal Conn,1-1/2",Zinc Plated,Mesh |
|---|---|
| Conduit Size | 1.5 |
| Thread Type | NPT Thread |
| Inside Body Diameter / Body Bore | 1.559 |
| Plating Color | Natural |
| B Dimension (in) | 0.72 |
| Body Material | Zinc Plated Malleable Iron |
| Clearance Hole (in) | 2.016 |
| Cord Grip Type | 45 Degree |
| Connector Material | Zinc Plated Malleable Iron |
| F Dimension (in) | 1.43 |
| C Dimension (in) | 2.5 |
| Plating Type | Zinc |
| G Dimension (in) | 1.9 |
| Maximum Knock Out Size (in) | 2.016 |
| Tab Info | Cord/Cable Dia.,Ratings/Mtls,Certifications,IP Ratings,Thread Specs,Knockout,L-Seal Approvals |
| Thread Size | 1.5 |
| UL Specification | E52002 |
| CSA Specification | 28,985 |
| Package Quantity | 1 |
