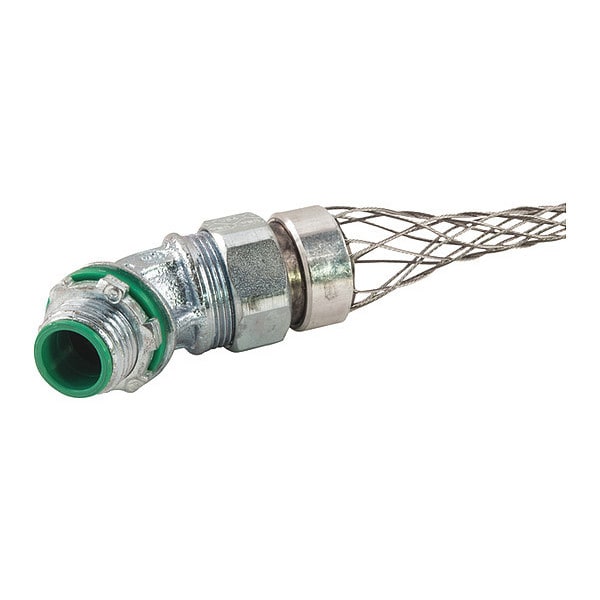

Liqua-Seal Conn, 1, Zinc Plated Iron, Mesh
| Item | Liqua-Seal Conn,1,Zinc Plated Iron,Mesh |
|---|---|
| Conduit Size | 1 |
| B Dimension (in) | 0.64 |
| C Dimension (in) | 1.63 |
| Cord Grip Type | 45 Degree |
| Plating Color | Natural |
| Thread Size | 1 |
| Thread Type | NPT Thread |
| Clearance Hole (in) | 1.406 |
| CSA Specification | 28,985 |
| Body Material | Zinc Plated Malleable Iron |
| Inside Body Diameter / Body Bore | 0.996 |
| UL Specification | E52002 |
| Plating Type | Zinc |
| Connector Material | Zinc Plated Malleable Iron |
| Tab Info | L-Seal Approvals,Ratings/Mtls,IP Ratings,Thread Specs,Cord/Cable Dia.,Certifications,Knockout |
| G Dimension (in) | 1.81 |
| F Dimension (in) | 1.1 |
| Maximum Knock Out Size (in) | 1.406 |
| Package Quantity | 1 |
