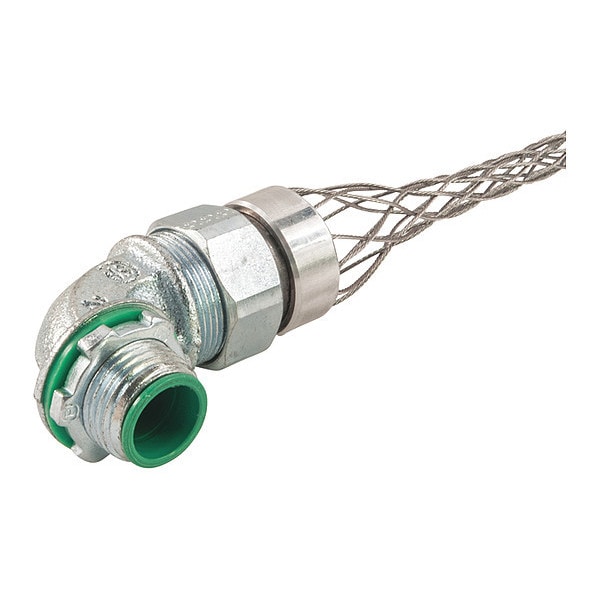

Liqua-Seal Conn, 1/2", Zinc Plated, Mesh
| Item | Liqua-Seal Conn,1/2",Zinc Plated,Mesh |
|---|---|
| Conduit Size | 44928 |
| B Dimension (in) | 0.5 |
| UL Specification | E52002 |
| Plating Type | Zinc |
| Body Material | Zinc Plated Malleable Iron |
| D Dimension (in) | 1.37 |
| Inside Body Diameter / Body Bore | 0.545 |
| Thread Size | 44928 |
| Connector Material | Zinc Plated Malleable Iron |
| Cord Grip Type | 90 Degree |
| G Dimension (in) | 1.47 |
| C Dimension (in) | 1.13 |
| Plating Color | Natural |
| Tab Info | L-Seal Approvals,Cord/Cable Dia.,Thread Specs,Certifications,IP Ratings,Knockout,Ratings/Mtls |
| Clearance Hole (in) | 0.906 |
| CSA Specification | 28,985 |
| F Dimension (in) | 0.87 |
| Thread Type | NPT Thread |
| E Dimension (in) | 1.75 |
| Maximum Knock Out Size (in) | 0.906 |
| Package Quantity | 1 |
