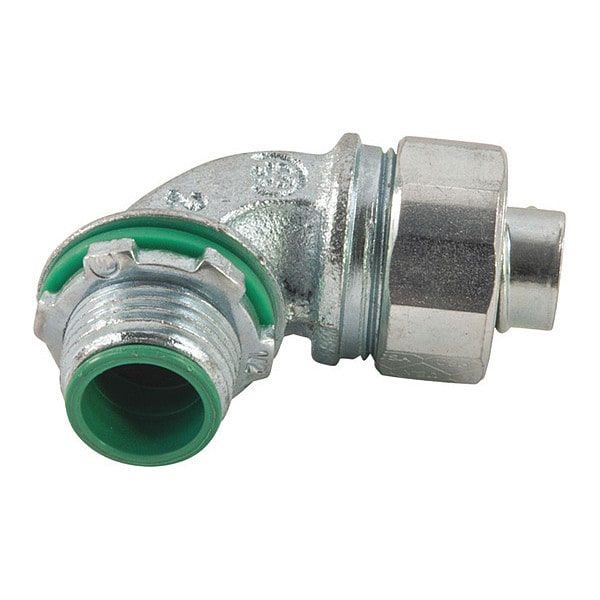

Liqua-Seal Conn, 3/4", Zinc Plated Iron
| Item | Liqua-Seal Conn,3/4",Zinc Plated Iron |
|---|---|
| Conduit Size | 44989 |
| UL Specification | E52002 |
| F Dimension (in) | 0.95 |
| Plating Color | Natural |
| C Dimension (in) | 1.38 |
| Maximum Knock Out Size (in) | 1.141 |
| B Dimension (in) | 0.56 |
| Clearance Hole (in) | 1.141 |
| Tab Info | Thread Specs,Certifications,Knockout,IP Ratings,Ratings/Mtls,L-Seal Approvals,Cord/Cable Dia. |
| Thread Type | NPT Thread |
| Plating Type | Zinc |
| CSA Specification | 28,985 |
| Thread Size | 44989 |
| Connector Material | Zinc Plated Malleable Iron |
| G Dimension (in) | 1.55 |
| Inside Body Diameter / Body Bore | 0.828 |
| D Dimension (in) | 1.53 |
| Cord Grip Type | 90 Degree |
| Body Material | Zinc Plated Malleable Iron |
| E Dimension (in) | 1.91 |
| Package Quantity | 1 |
