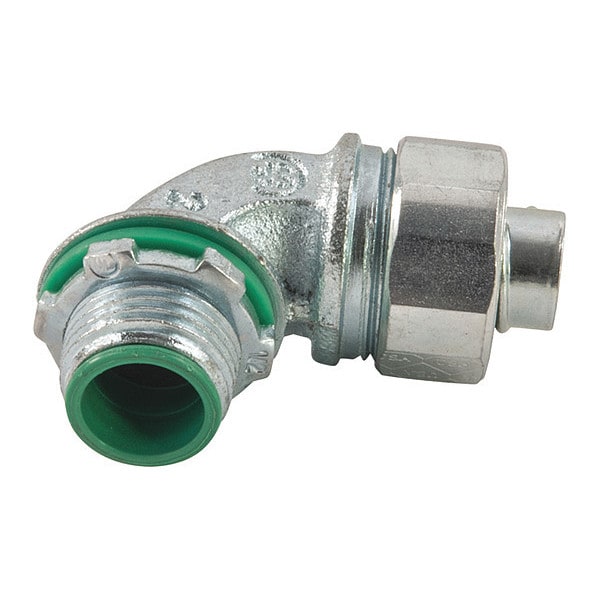

Liqua-Seal Conn, Insltd, 1-1/4", Zn Plated
| Item | Liqua-Seal Conn,Insltd,1-1/4",Zn Plated |
|---|---|
| Conduit Size | 1.25 |
| D Dimension (in) | 2.05 |
| C Dimension (in) | 2.25 |
| Clearance Hole (in) | 1.766 |
| Inside Body Diameter / Body Bore | 1.322 |
| Body Material | Zinc Plated Malleable Iron |
| B Dimension (in) | 0.72 |
| CSA Specification | 28,985 |
| Plating Type | Zinc |
| F Dimension (in) | 1.35 |
| Thread Size | 1.25 |
| Thread Type | NPT Thread |
| Maximum Knock Out Size (in) | 1.766 |
| Tab Info | L-Seal Approvals,Ratings/Mtls,Cord/Cable Dia.,Knockout,Certifications,Thread Specs,IP Ratings |
| E Dimension (in) | 2.33 |
| Connector Material | Zinc Plated Malleable Iron |
| Plating Color | Natural |
| G Dimension (in) | 1.84 |
| Cord Grip Type | 90 Degree |
| UL Specification | E52002 |
| Package Quantity | 1 |
