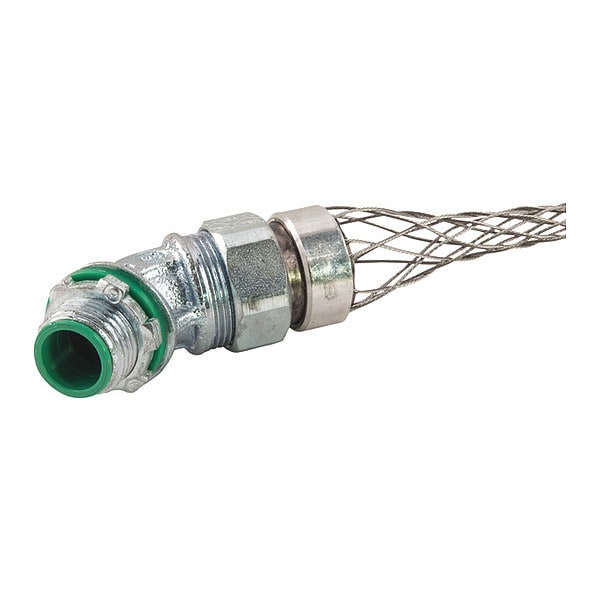

Liqua-Seal Conn, Insltd, 1, Zn Plated, Mesh
| Item | Liqua-Seal Conn,Insltd,1,Zn Plated,Mesh |
|---|---|
| Conduit Size | 1 |
| Thread Type | NPT Thread |
| G Dimension (in) | 1.81 |
| Thread Size | 1 |
| UL Specification | E52002 |
| C Dimension (in) | 1.63 |
| Clearance Hole (in) | 1.406 |
| F Dimension (in) | 1.1 |
| Maximum Knock Out Size (in) | 1.406 |
| CSA Specification | 246,699 |
| Connector Material | Zinc Plated Malleable Iron |
| B Dimension (in) | 0.64 |
| Plating Type | Zinc |
| Body Material | Zinc Plated Malleable Iron |
| Cord Grip Type | 45 Degree |
| Tab Info | Thread Specs,IP Ratings,Certifications,Knockout,Ratings/Mtls,L-Seal Approvals,Cord/Cable Dia. |
| Inside Body Diameter / Body Bore | 1 |
| Plating Color | Natural |
| Package Quantity | 1 |
