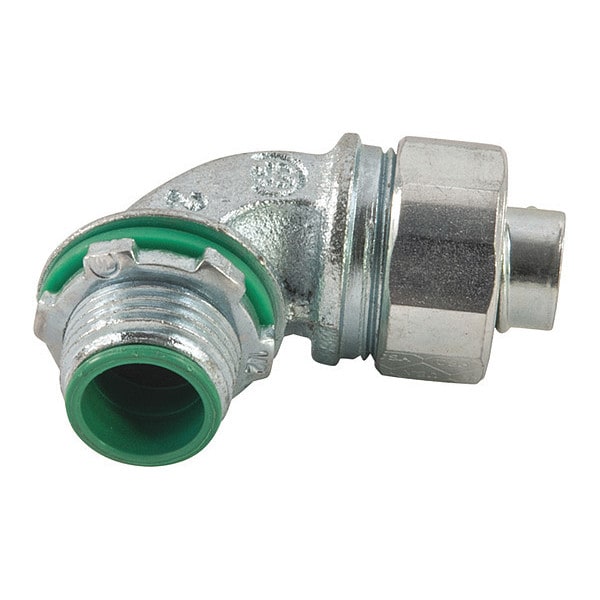

Liqua-Seal Conn, Insulated, 2", Zinc Plated
| Item | Liqua-Seal Conn,Insulated,2",Zinc Plated |
|---|---|
| Conduit Size | 2 |
| D Dimension (in) | 2.51 |
| Maximum Knock Out Size (in) | 2.5 |
| Thread Size | 2 |
| C Dimension (in) | 3 |
| Plating Type | Zinc |
| B Dimension (in) | 0.78 |
| Clearance Hole (in) | 2.5 |
| UL Specification | E52002 |
| Inside Body Diameter / Body Bore | 2.011 |
| Body Material | Zinc Plated Malleable Iron |
| Cord Grip Type | 90 Degree |
| Connector Material | Zinc Plated Malleable Iron |
| G Dimension (in) | 2 |
| E Dimension (in) | 2.73 |
| Plating Color | Natural |
| CSA Specification | 28,985 |
| Tab Info | IP Ratings,L-Seal Approvals,Cord/Cable Dia.,Certifications,Knockout,Thread Specs,Ratings/Mtls |
| Thread Type | NPT Thread |
| F Dimension (in) | 4.53 |
| Package Quantity | 1 |
