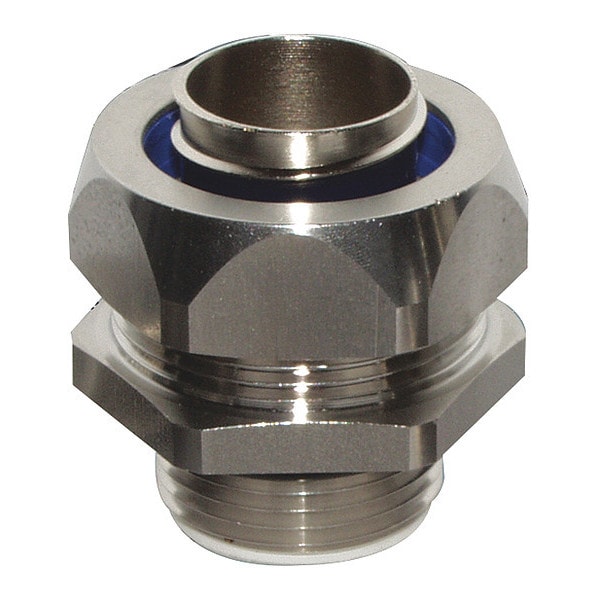

Liqua-Seal Connector, Insulated, 1-1/4", SS
| Item | Liqua-Seal Connector,Insulated,1-1/4",SS |
|---|---|
| Conduit Size | 1.25 |
| Maximum Knock Out Size (in) | 1.766 |
| B Dimension (in) | 2.04 |
| Plating Color | Natural |
| Thread Size | 1.25 |
| Inside Body Diameter / Body Bore | 1.304 |
| Clearance Hole (in) | 1.766 |
| A Dimension (in) | 0.63 |
| Plating Type | Passivated |
| Tab Info | IP Ratings,Certifications,Knockout,Thread Specs,Cord/Cable Dia.,Flammability,Ratings/Mtls,Approvals |
| NEMA Rating | 4X |
| IP Rating | IP68 |
| Connector Material | Stainless Steel |
| Body Material | Stainless Steel |
| C Dimension (in) | 2.12 |
| Thread Type | NPT Thread |
| Cord Grip Type | Straight |
| Package Quantity | 1 |
