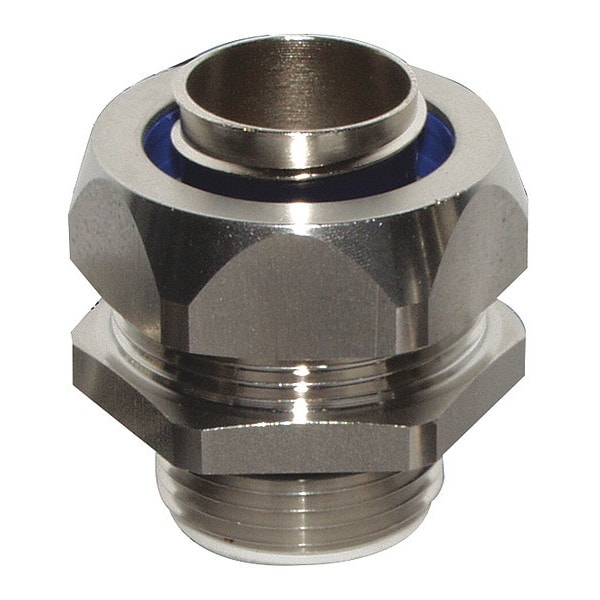

Liqua-Seal Connector, Insulated, 1", SS
| Item | Liqua-Seal Connector,Insulated,1",SS |
|---|---|
| Conduit Size | 1 |
| B Dimension (in) | 1.69 |
| Body Material | Stainless Steel |
| Thread Size | 1 |
| Thread Type | NPT Thread |
| Tab Info | Ratings/Mtls,Cord/Cable Dia.,Flammability,Thread Specs,IP Ratings,Knockout,Certifications,Approvals |
| Maximum Knock Out Size (in) | 1.406 |
| C Dimension (in) | 1.77 |
| Cord Grip Type | Straight |
| Plating Color | Natural |
| Inside Body Diameter / Body Bore | 0.96 |
| A Dimension (in) | 0.59 |
| Plating Type | Passivated |
| IP Rating | IP68 |
| Clearance Hole (in) | 1.406 |
| NEMA Rating | 4X |
| Connector Material | Stainless Steel |
| Package Quantity | 1 |
