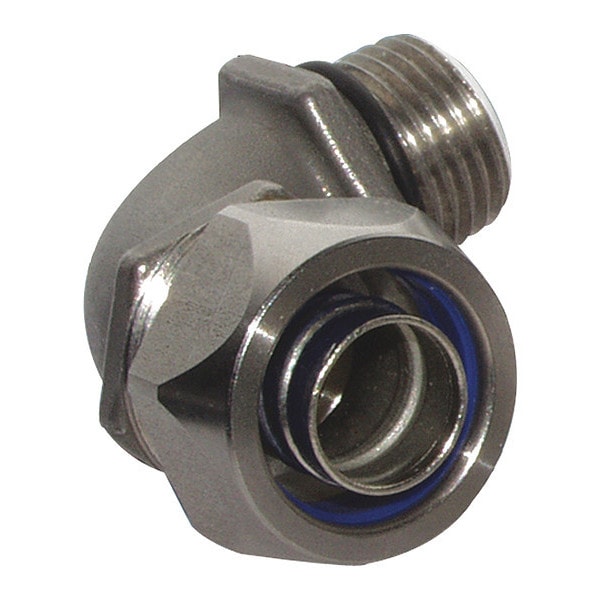

Liqua-Seal Connector, Insulated, 1/2", SS
| Item | Liqua-Seal Connector,Insulated,1/2",SS |
|---|---|
| Conduit Size | 44928 |
| Thread Size | 44928 |
| Maximum Knock Out Size (in) | 0.906 |
| Tab Info | IP Ratings,Certifications,Flammability,Knockout,Cord/Cable Dia.,Ratings/Mtls,Thread Specs,Approvals |
| Plating Color | Natural |
| Body Material | Stainless Steel |
| A Dimension (in) | 0.51 |
| Clearance Hole (in) | 0.906 |
| C Dimension (in) | 1.14 |
| IP Rating | IP68 |
| B Dimension (in) | 1.06 |
| Plating Type | Passivated |
| Connector Material | Stainless Steel |
| NEMA Rating | 4X |
| Cord Grip Type | 90 Degree |
| Thread Type | NPT Thread |
| Inside Body Diameter / Body Bore | 0.573 |
| Package Quantity | 1 |
