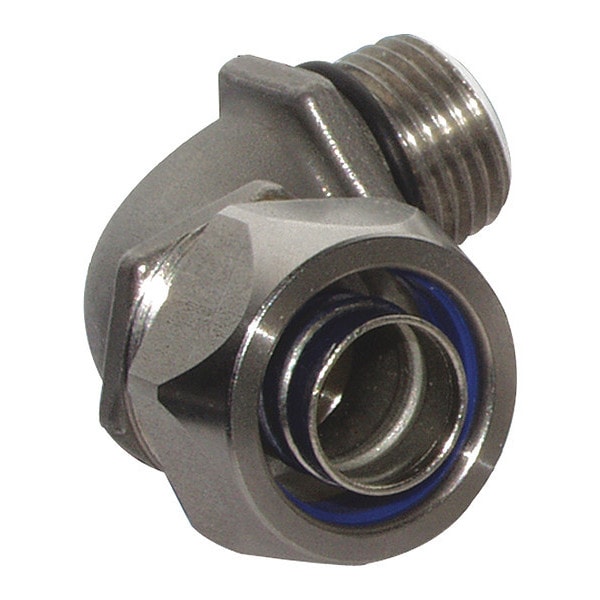

Liqua-Seal Connector, Insulated, 2" NPT, SS
| Item | Liqua-Seal Connector,Insulated,2" NPT,SS |
|---|---|
| Conduit Size | 2 |
| Maximum Knock Out Size (in) | 2.5 |
| Clearance Hole (in) | 2.5 |
| Plating Color | Natural |
| Inside Body Diameter / Body Bore | 1.876 |
| A Dimension (in) | 0.79 |
| Plating Type | Passivated |
| Thread Size | 2 |
| Cord Grip Type | 90 Degree |
| IP Rating | IP68 |
| Connector Material | Stainless Steel |
| Body Material | Stainless Steel |
| NEMA Rating | 4X |
| B Dimension (in) | 2.93 |
| Tab Info | Certifications,Cord/Cable Dia.,IP Ratings,Ratings/Mtls,Thread Specs,Flammability,Knockout,Approvals |
| C Dimension (in) | 3.03 |
| Thread Type | NPT Thread |
| Package Quantity | 1 |
