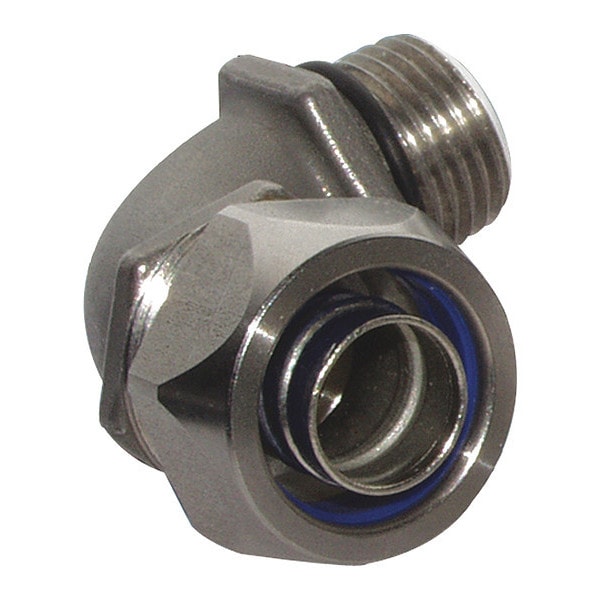

Liqua-Seal Connector, Insulated, 3/4", SS
| Item | Liqua-Seal Connector,Insulated,3/4",SS |
|---|---|
| Conduit Size | 44989 |
| Thread Size | 44989 |
| Tab Info | Flammability,Cord/Cable Dia.,Certifications,Knockout,Approvals,Thread Specs,Ratings/Mtls,IP Ratings |
| Clearance Hole (in) | 1.141 |
| Connector Material | Stainless Steel |
| Thread Type | NPT Thread |
| B Dimension (in) | 1.3 |
| A Dimension (in) | 0.59 |
| C Dimension (in) | 1.38 |
| NEMA Rating | 4X |
| IP Rating | IP68 |
| Body Material | Stainless Steel |
| Plating Type | Passivated |
| Plating Color | Natural |
| Maximum Knock Out Size (in) | 1.141 |
| Inside Body Diameter / Body Bore | 0.771 |
| Cord Grip Type | 90 Degree |
| Package Quantity | 1 |
