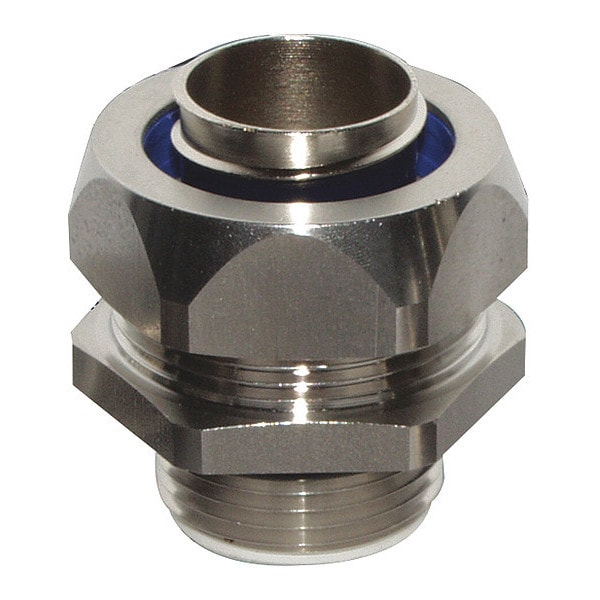

Liqua-Seal Connector, Insulated, 3/4", SS
| Item | Liqua-Seal Connector,Insulated,3/4",SS |
|---|---|
| Conduit Size | 44989 |
| Inside Body Diameter / Body Bore | 0.755 |
| C Dimension (in) | 1.38 |
| NEMA Rating | 4X |
| A Dimension (in) | 0.59 |
| Plating Type | Passivated |
| Cord Grip Type | Straight |
| Tab Info | Certifications,Cord/Cable Dia.,Thread Specs,IP Ratings,Flammability,Approvals,Knockout,Ratings/Mtls |
| Thread Type | NPT Thread |
| Thread Size | 44989 |
| Plating Color | Natural |
| IP Rating | IP68 |
| B Dimension (in) | 1.3 |
| Connector Material | Stainless Steel |
| Clearance Hole (in) | 1.141 |
| Body Material | Stainless Steel |
| Maximum Knock Out Size (in) | 1.141 |
| Package Quantity | 1 |
