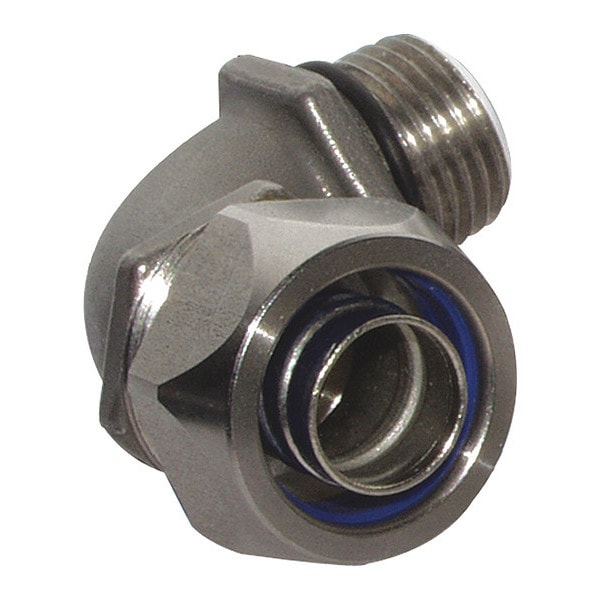

Liqua-Seal Connector, Insulated, 3/8", SS
| Item | Liqua-Seal Connector,Insulated,3/8",SS |
|---|---|
| Conduit Size | 44993 |
| IP Rating | IP68 |
| Plating Color | Natural |
| A Dimension (in) | 0.45 |
| Clearance Hole (in) | 0.701 |
| NEMA Rating | 4X |
| Cord Grip Type | 90 Degree |
| Tab Info | Certifications,Flammability,Knockout,Approvals,IP Ratings,Ratings/Mtls,Cord/Cable Dia.,Thread Specs |
| Body Material | Stainless Steel |
| Thread Size | 44993 |
| Thread Type | NPT Thread |
| Connector Material | Stainless Steel |
| Inside Body Diameter / Body Bore | 0.414 |
| Maximum Knock Out Size (in) | 0.701 |
| Plating Type | Passivated |
| B Dimension (in) | 0.94 |
| C Dimension (in) | 1.02 |
| Package Quantity | 1 |
