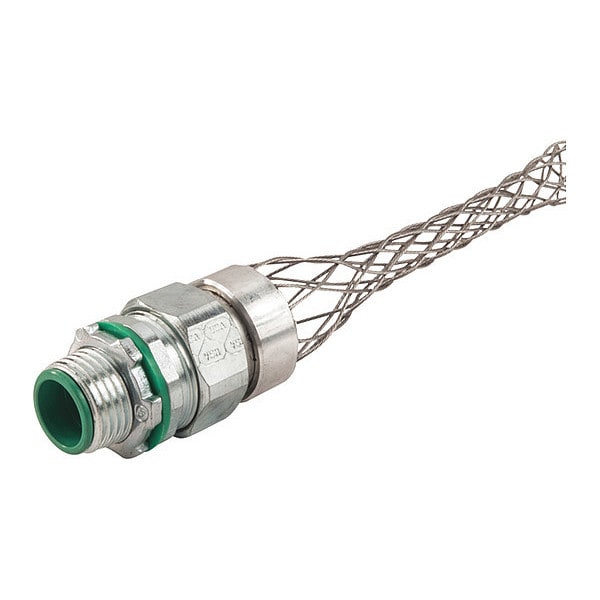

LiquaSeal Conn, 1-1/4", Zn Pltd Steel, Mesh
| Item | LiquaSeal Conn,1-1/4",Zn Pltd Steel,Mesh |
|---|---|
| Conduit Size | 1.25 |
| Thread Size | 1.25 |
| Tab Info | Knockout,L-Seal Approvals,IP Ratings,Cord/Cable Dia.,Thread Specs,Certifications,Ratings/Mtls |
| CSA Specification | 28,985 |
| Clearance Hole (in) | 1.766 |
| C Dimension (in) | 2.25 |
| UL Specification | E52002 |
| Body Material | Steel |
| Plating Color | Natural |
| Plating Type | Zinc |
| Thread Type | NPT Thread |
| A Dimension (in) | 8.09 |
| B Dimension (in) | 0.72 |
| Cord Grip Type | Straight |
| Connector Material | Zinc Plated Steel |
| Inside Body Diameter / Body Bore | 1.315 |
| Maximum Knock Out Size (in) | 1.766 |
| Package Quantity | 1 |
