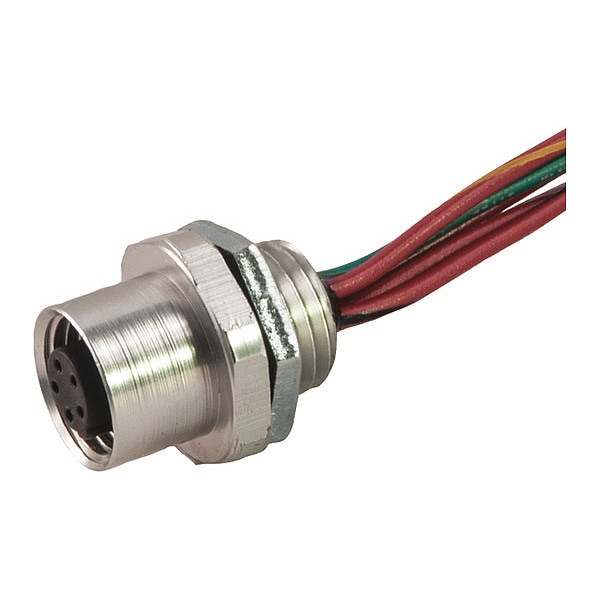

Receptacle, D Key, Fem, 4 Pole, 1/4", 18 AWG
| Item | Receptacle,D Key,Fem,4 Pole,1/4",18 AWG |
|---|---|
| IP Rating | IP67 |
| Receptacle Configuration | Female Straight |
| Voltage Rating (DC) | 300 |
| Cable Code | Auto |
| Conductor Color 4 | Green |
| Maximum Operating Temperature (C) | 80 |
| Insert Material | Nylon |
| Thread 1 | 1/2-20 UNF |
| Contact Resistance (Micro Ohms) | 5 |
| Minimum Operating Temperature (F) | -4 |
| Conductor Color 1 | Red, Black |
| Conductor Color 2 | Red, White |
| Shell Material | Machined Aluminum |
| Connector Style | MicroLink Dual Key |
| Minimum Operating Temperature (C) | -20 |
| Contact Material | Brass, Gold, Nickel" |
| Current Rating (amps) | 5 |
| Shell Plating | Clear Anodized |
| Receptacle Lead Length | 1 |
| Wire Gauge | 18 AWG |
| Voltage Rating (AC) | 250 |
| Tab Info | Cable Jacket Mtl,Cable Cross,ROHS,TL APP,IP Ratings,CRT,Coupling Nut Mtl,Knockout Dim |
| Thread 2 | 1/4-18 NPT |
| O-Ring Material | Nitrile Rubber |
| Length (in) | 0.93 |
| CSA Specification | E165657 |
| Locknut Material | Steel |
| Contact Carrier Material | Nylon |
| Nema Rating | 6P |
| Cable Strand | 26 X #36 |
| cRU Specification | E165657 |
| Maximum Knock Out Size (in) | 0.57 |
| Poles | 4 |
| Conductor Color 3 | Red |
| Receptacle Lead Jacket Material | PVC |
| Wiring Color Code | Auto CC |
| Maximum Operating Temperature (F) | 176 |
| Package Quantity | 1 |
