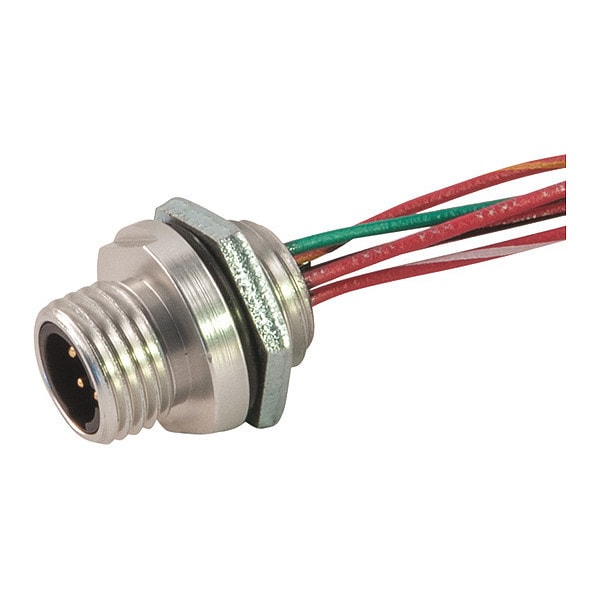

Receptacle, Dual Key, M, 2 Pole, 1, 1/4" NPT
| Item | Receptacle,Dual Key,M,2 Pole,1,1/4" NPT |
|---|---|
| IP Rating | IP67 |
| Voltage Rating (DC) | 300 |
| CSA Specification | E165657 |
| Contact Carrier Material | Nylon |
| Cable Strand | 26 X #36 |
| Maximum Operating Temperature (F) | 176 |
| Maximum Operating Temperature (C) | 80 |
| Current Rating (amps) | 4 |
| Nema Rating | 6P |
| Receptacle Lead Length | 1 |
| Contact Resistance (Micro Ohms) | 5 |
| Minimum Operating Temperature (F) | -4 |
| Receptacle Configuration | Male Straight |
| Cable Code | Auto |
| O-Ring Material | Nitrile Rubber |
| Conductor Color 2 | Blue |
| Voltage Rating (AC) | 250 |
| Poles | 2 |
| Conductor Color 1 | Brown |
| Insert Material | Nylon |
| Thread 2 | 1/4-18 NPT |
| Thread 1 | 1/2-20 UNF |
| Wire Gauge | 22 AWG |
| Connector Style | MicroLink Dual Key |
| cRU Specification | E165657 |
| Shell Material | Machined Aluminum |
| Tab Info | ROHS,TL APP,Knockout Dim,IP Ratings,Cable Jacket Mtl,Cable Cross,CRT,Coupling Nut Mtl |
| Receptacle Lead Jacket Material | PVC |
| Locknut Material | Steel |
| Length (in) | 0.76 |
| Shell Plating | Clear Anodized |
| Wiring Color Code | Auto CC |
| Minimum Operating Temperature (C) | -20 |
| Maximum Knock Out Size (in) | 0.57 |
| Contact Material | Brass, Gold, Nickel" |
| Package Quantity | 1 |
