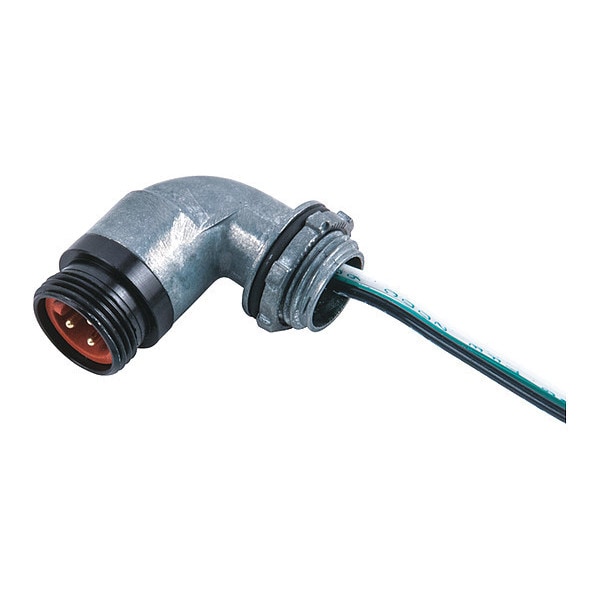

Receptáculo, Mini, Alta temperatura, Macho, 5 polos, 1 pie.
| Item | Mini Link Receptacle |
|---|---|
| Max. Voltage | 600VAC/DC |
| Wire Size | 16 AWG |
| NEMA Rating | 6P |
| For Use With | 12 and 18mm Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids And Hydraulic Valves; Foot Operated Switches; Power Tools; Cranes, Hoists and their Controls |
| Features | Nickel Coated Then Gold Plated Contacts For Enhanced Corrosion Resistance and Conductivity; Pins and Contacts Crimped Onto Wires Assuring Secure Terminations; Precision Machined Contacts For Highly Accurate Tolerances; Heavy-Duty SOOW, SJOOW or STOW Cable Options; Integral Strain Relief and Plated Coupling Nuts |
| Number of Conductors | 5 |
| IP Rating | IP67 |
| Temp. Range | -58 to 356 deg F |
| Max. Amps | 8 |
| Color | White, Red, Green, Orange, Black |
| Conductor Color 1 | White |
| Voltage Rating (AC) | 600 |
| Length (in) | 1.94 |
| Shell Material | Machined Aluminum |
| Contact Sleeve | Stainless Steel |
| Minimum Operating Temperature (F) | -58 |
| Wiring Color Code | Auto CC |
| Maximum Knock Out Size (in) | 0.906 |
| Contact Resistance (Micro Ohms) | 5 |
| Shell Plating | Black Anodized |
| O-Ring Material | Viton |
| Thread 1 | 7/8-16 UNS |
| Conductor Color 3 | Green |
| Poles | 5 |
| Voltage Rating (DC) | 600 |
| Contact Carrier Material | Silicone |
| Receptacle Configuration | Male 90 Deg |
| Thread 2 | 1/2-14 NPT |
| Cable Strand | 26 X #30 |
| Maximum Operating Temperature (F) | 356 |
| Conductor Color 5 | Black |
| Conductor Color 2 | Red |
| Current Rating (amps) | 8 |
| Wire Gauge | 16 AWG |
| Cable Code | Auto |
| Conductor Color 4 | Orange |
| Contact Material | Brass Plated, Gold, Nickel" |
| Connector Style | MiniLink |
| Receptacle Lead Jacket Material | Silicone |
| Receptacle Lead Length | 1 |
| Insert Material | Silicone |
| Locknut Material | Steel |
| Package Quantity | 1 |
