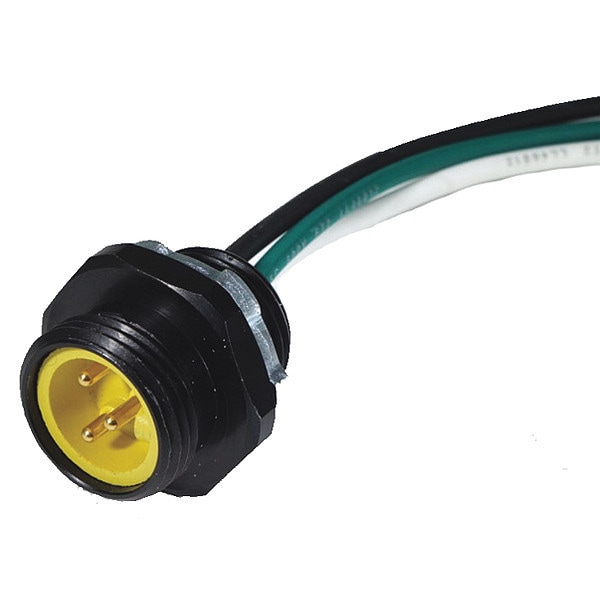

Receptáculo, MiniSize, Macho, 2 polos, 1 pie.
| Item | Mini Link Receptacle |
|---|---|
| Max. Voltage | 600VAC/DC |
| Wire Size | 16 AWG |
| NEMA Rating | 6P |
| Temp. Range | -4 to 221 deg F |
| IP Rating | IP67 |
| Color | White, Black |
| Features | Multiple Hole Bushings in a Variety Of Hole Combinations; Slit Bushings; Embedded O-Rings; Nickel Coated then Gold Plated Contacts for Enhanced Corrosion Resistance and Conductivity; Pins and Contacts Crimped onto Wires Assuring Secure Terminations, Precision Machined Contacts for Highly Accurate Tolerances; Heavy-Duty SOOW, SJOOW or STOW Cable Options; Integral Strain Relief and Plated Coupling Nuts |
| Number of Conductors | 2 |
| Max. Amps | 13 |
| For Use With | 12 and 18mm Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids And Hydraulic Valves; Foot Operated Switches; Power Tools; Cranes, Hoists and their Controls |
| Receptacle Configuration | Male Straight |
| CSA Specification | E165657 |
| Length (in) | 1.07 |
| Contact Sleeve | Stainless Steel |
| Conductor Color 2 | Black |
| Voltage Rating (AC) | 600 |
| Contact Carrier Material | PVC |
| Poles | 2 |
| Receptacle Lead Length | 1 |
| Wiring Color Code | Auto CC |
| Contact Material | Brass Plated, Gold, Nickel" |
| Cable Strand | 26 X #30 |
| Voltage Rating (DC) | 600 |
| Wire Gauge | 16 AWG |
| Cable Code | Auto |
| Shell Plating | Black Anodized |
| Maximum Knock Out Size (in) | 0.906 |
| Connector Style | MiniLink |
| Thread 2 | 1/2-14 NPT |
| Conductor Color 1 | White |
| Receptacle Lead Jacket Material | PVC |
| Current Rating (amps) | 13 |
| Contact Resistance (Micro Ohms) | 5 |
| cRU Specification | E165657 |
| Insert Material | PVC |
| Minimum Operating Temperature (F) | -4 |
| Locknut Material | Steel |
| Thread 1 | 7/8-16 UNS |
| Shell Material | Machined Aluminum |
| O-Ring Material | Viton |
| Maximum Operating Temperature (F) | 221 |
| Package Quantity | 1 |
