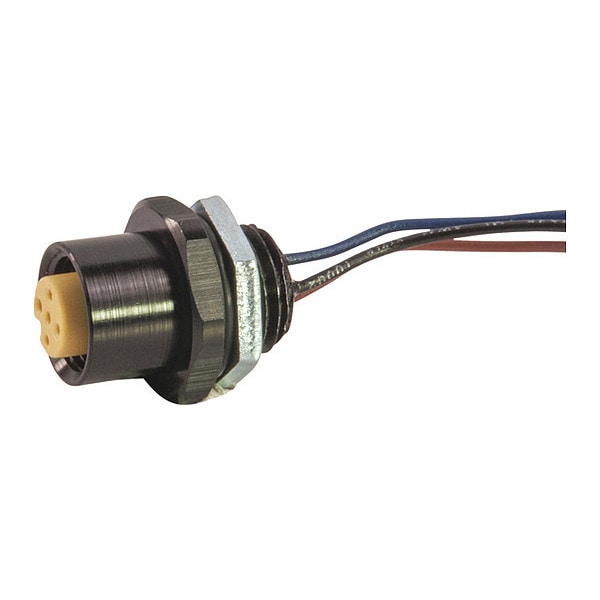

Receptacle, Single Key, Fale, 4 Pole, 1 ft.
| Item | Receptacle,Single Key,Fale,4 Pole,1 ft. |
|---|---|
| IP Rating | IP67 |
| Voltage Rating (DC) | 300 |
| Conductor Color 3 | Blue |
| Cable Strand | 26 X #36 |
| Conductor Color 4 | Black |
| Current Rating (amps) | 4 |
| Maximum Operating Temperature (C) | 105 |
| O-Ring Material | Nitrile Rubber |
| Nema Rating | 6P |
| Conductor Color 2 | White |
| Voltage Rating (AC) | 250 |
| Wiring Color Code | Euro CC |
| Conductor Color 1 | Brown |
| Contact Material | Brass, Gold, Nickel" |
| Maximum Knock Out Size (in) | 0.57 |
| cRU Specification | E165657 |
| Wire Gauge | 22 AWG |
| Minimum Operating Temperature (C) | -20 |
| Minimum Operating Temperature (F) | -4 |
| Receptacle Lead Length | 1 |
| Contact Carrier Material | Nylon |
| Shell Plating | Black Anodized |
| Cable Code | Euro |
| Locknut Material | Steel |
| Receptacle Configuration | Female Straight |
| Poles | 4 |
| Thread 2 | 1/4-18 NPT |
| Insert Material | Nylon |
| Maximum Operating Temperature (F) | 221 |
| Tab Info | Coupling Nut Mtl,IP Ratings,Cable Jacket Mtl,TL APP,ROHS,Knockout Dim,Cable Cross,CRT |
| Receptacle Lead Jacket Material | PVC |
| Contact Resistance (Micro Ohms) | 5 |
| Thread 1 | M12X1 |
| Shell Material | Machined Aluminum |
| Length (in) | 0.93 |
| Connector Style | MicroLink Single Key |
| Package Quantity | 1 |
